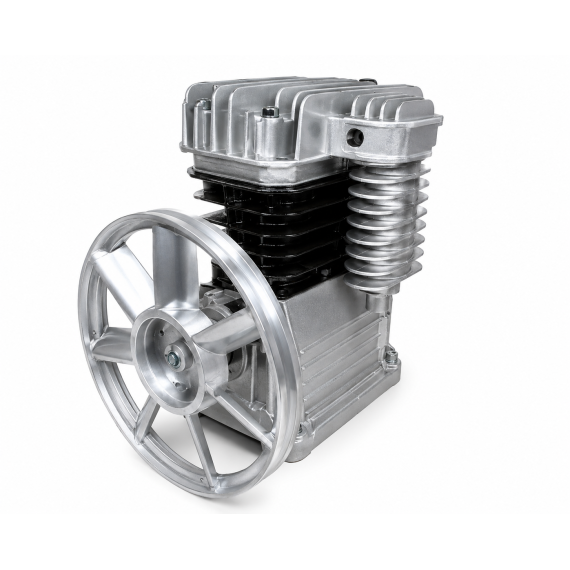

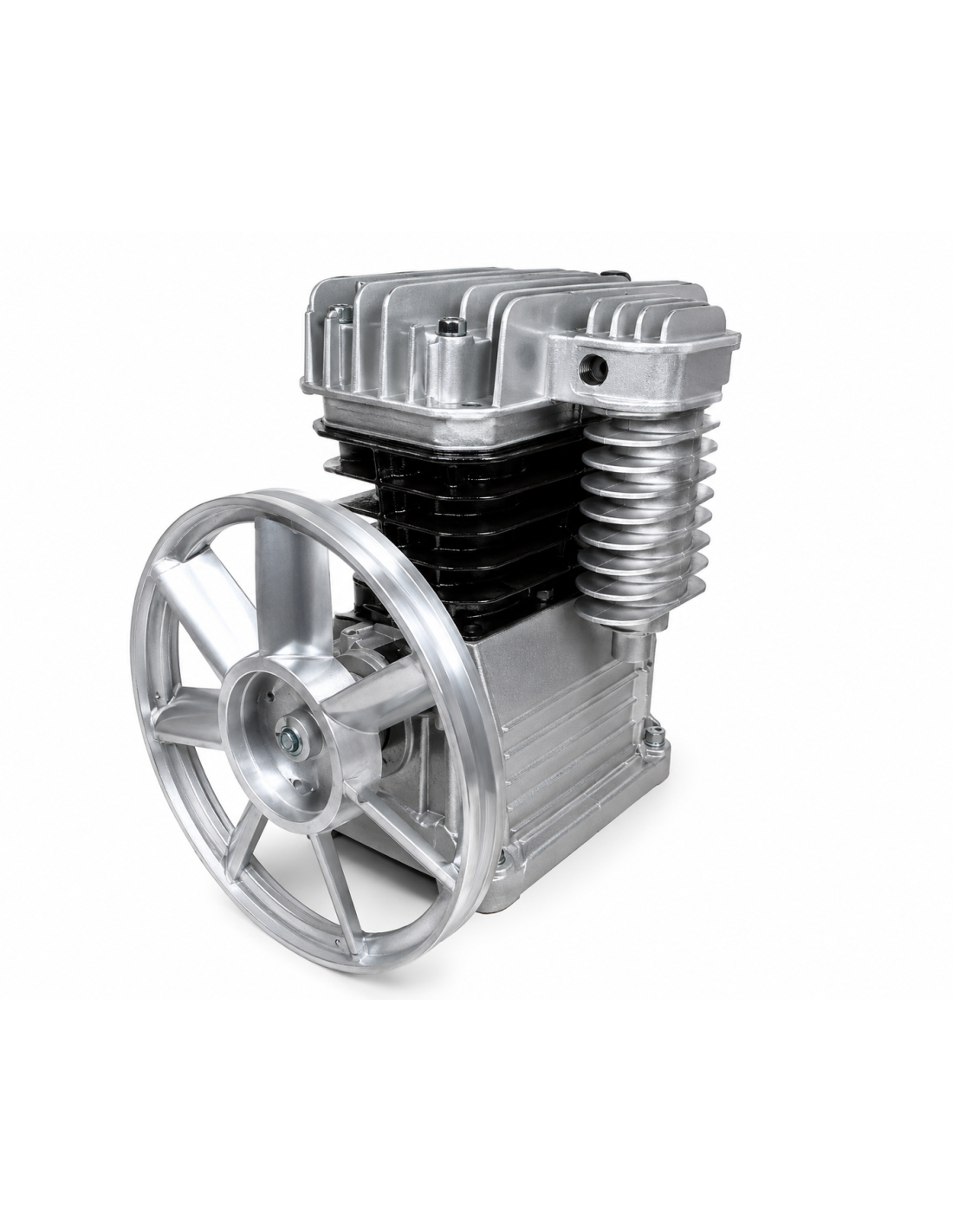

3HPP-001 3HP Electric Compressor Pump – 21CFM, 150 PSI

The 3HPP-001 Electric Compressor Pump is a heavy-duty replacement compressor pump designed for use with 3HP air compressor systems, particularly larger-capacity workshop and industrial compressors. With a high stated flow rate of 21CFM and a maximum pressure of 150 PSI, it is designed to provide rapid receiver filling and a strong supply of compressed air for demanding pneumatic applications.

This pump is suitable for use with up to 200-litre compressor receivers and can be used when replacing a worn or damaged compressor pump or when building a custom belt-driven compressor installation. Its 2,900 RPM operating speed is suited to a typical 3HP compressor motor and drive arrangement.

With its combination of 3HP power, high air displacement and 150 PSI maximum pressure, the 3HPP-001 is well suited to workshops, garages, industrial environments and other applications where a dependable, high-volume compressed air supply is required.

Key Features

• Heavy-duty 3HP compressor pump
• High 21cfm / 596 L/min stated air flow
• Maximum pressure of 150 PSI
• Designed for use with up to 200-litre air receivers
• Operating speed of approximately 2,900 RPM
• Suitable as a replacement compressor pump
• Suitable for workshop and industrial compressor applications
• Ideal for high-volume compressed air requirements
• Suitable for compressor refurbishment and custom builds

Specifications

• Product Code: 3HPP-001
• Product Type: Electric Compressor Pump / Compressor Pump Head
• Power Rating: 3HP
• Air Flow: 596 L/min
• Maximum Pressure: 150 PSI
• Recommended Operating Speed: 2,900 RPM
• Recommended Receiver Capacity: 200 Litres
• Application: Workshop, Industrial & Site Compressors

Typical Applications

• 200-litre air compressor systems
• Replacement compressor pump installations
• Workshop compressors
• Garage compressors
• Industrial pneumatic systems
• Air tool applications
• Compressor refurbishment
• Custom compressor builds

Installation & Compatibility

The 3HPP-001 is intended for compressor installations using a 3HP drive system and operating at approximately 2,900 RPM. When replacing an existing compressor pump, the mounting arrangement, pulley dimensions, belt alignment and required pump speed should be checked before installation.

The pump is specified for use with 200-litre compressor tanks and a maximum pressure of 150 PSI. Correct pressure switch, safety valve, delivery pipe and electrical protection arrangements should be used as part of the complete compressor system.

Please note: The manufacturer's listing provides limited technical information beyond the specifications above, so I would avoid adding unverified details such as cylinder configuration, pulley size, outlet thread or oil capacity until those specifications have been confirmed.
