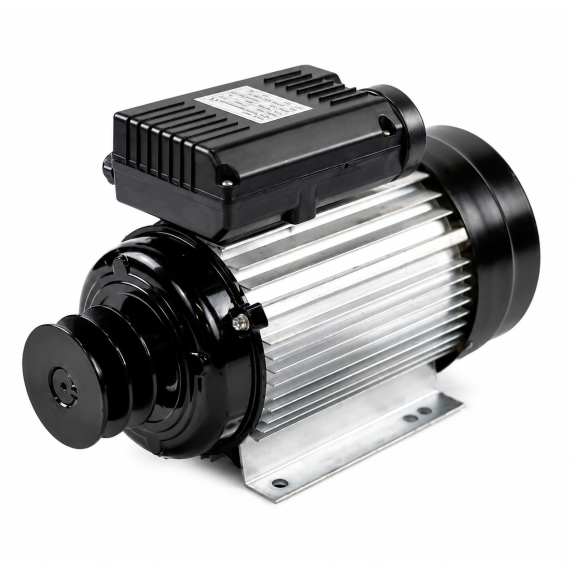

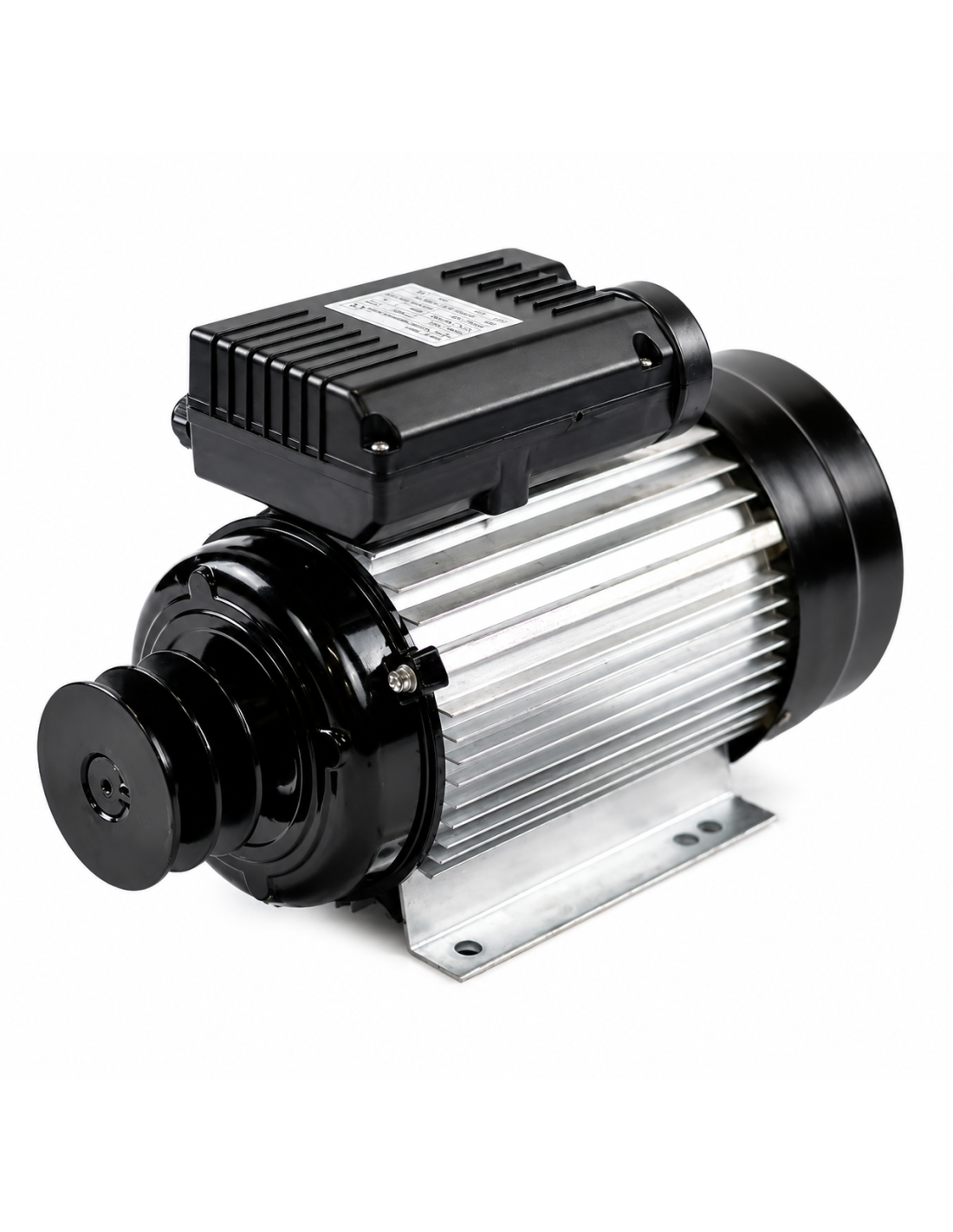

BS5500 5.5HP 4kW Single Phase Electric Air Compressor Motor

The BS5500 5.5HP Electric Compressor Motor is a robust single-phase induction motor designed specifically for driving air compressors, as well as pumps, machinery and other belt-driven equipment. With a 4kW (5.5HP) output and a nominal operating speed of 2,800 RPM, it provides the power and starting performance required for larger workshop and industrial compressor applications.

The motor operates from a standard 220–240V / 50Hz single-phase supply and draws approximately 14A. Its IP54-rated enclosure provides protection against dust and water splashes, making it suitable for workshop and industrial environments. Manual-reset overload protection provides an additional safeguard against motor overload and allows the motor to be returned to service quickly once the cause of the overload has been addressed.

The BS5500 is particularly suitable as a replacement motor for 5.5HP / 4kW belt-driven air compressors, or as the drive motor when building or refurbishing a compressor installation. Always check the pump requirements, pulley ratio, mounting dimensions and electrical installation before fitting.

Key Features

• 5.5HP / 4kW electric motor for larger compressor applications
• Single-phase operation from a standard 220–240V / 50Hz supply
• Approximately 2,800 RPM operating speed
• IP54 protection against dust and water splashes
• Manual-reset overload protection
• Suitable for replacement compressor applications
• Suitable for driving air compressors, pumps and other belt-driven machinery
• Designed for workshop and industrial environments
• Suitable for new equipment builds or replacement installations

Specifications

• Product Code: BS5500
• Product Type: Electric Compressor Motor
• Motor Power: 5.5HP / 4kW
• Supply Voltage: 220–240V
• Frequency: 50Hz
• Phase: Single Phase
• Rated Speed: 2,800 RPM
• Current Draw: 14A
• Protection Rating: IP54
• Overload Protection: Manual Reset
• Application: Air Compressors, Pumps, Machinery & Conveyors
• Motor Type: Electric Induction Motor

Typical Applications

• 5.5HP air compressor replacement motors
• Belt-driven piston compressors
• Compressor refurbishment
• Workshop compressors
• Industrial air compressors
• Water and other pumps
• Belt-driven machinery
• Custom machinery builds

Installation & Compatibility

The BS5500 is intended for use with equipment requiring a 5.5HP / 4kW single-phase drive motor. When replacing an existing compressor motor, check the motor's physical mounting arrangement, shaft dimensions, pulley requirements and belt alignment before ordering.

For compressor applications, the motor pulley must be correctly matched to the compressor pump pulley to achieve the manufacturer's recommended pump RPM. Incorrect pulley sizing can result in excessive pump speed, overheating, reduced performance or premature wear.

The motor's 14A current draw should also be taken into account when selecting the appropriate electrical supply, switching equipment, cabling and overload protection.
