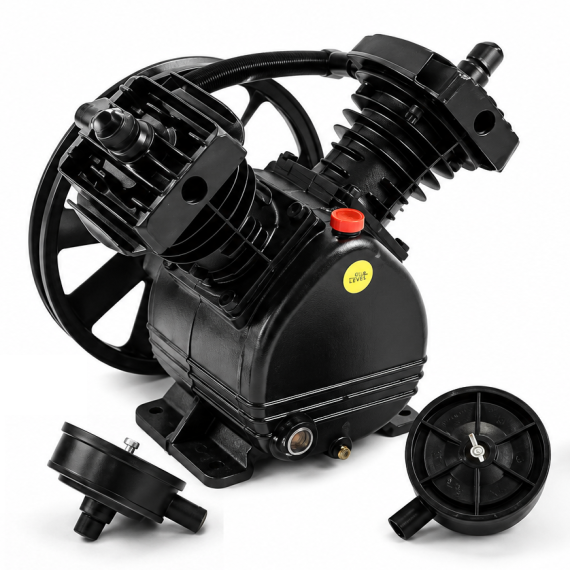

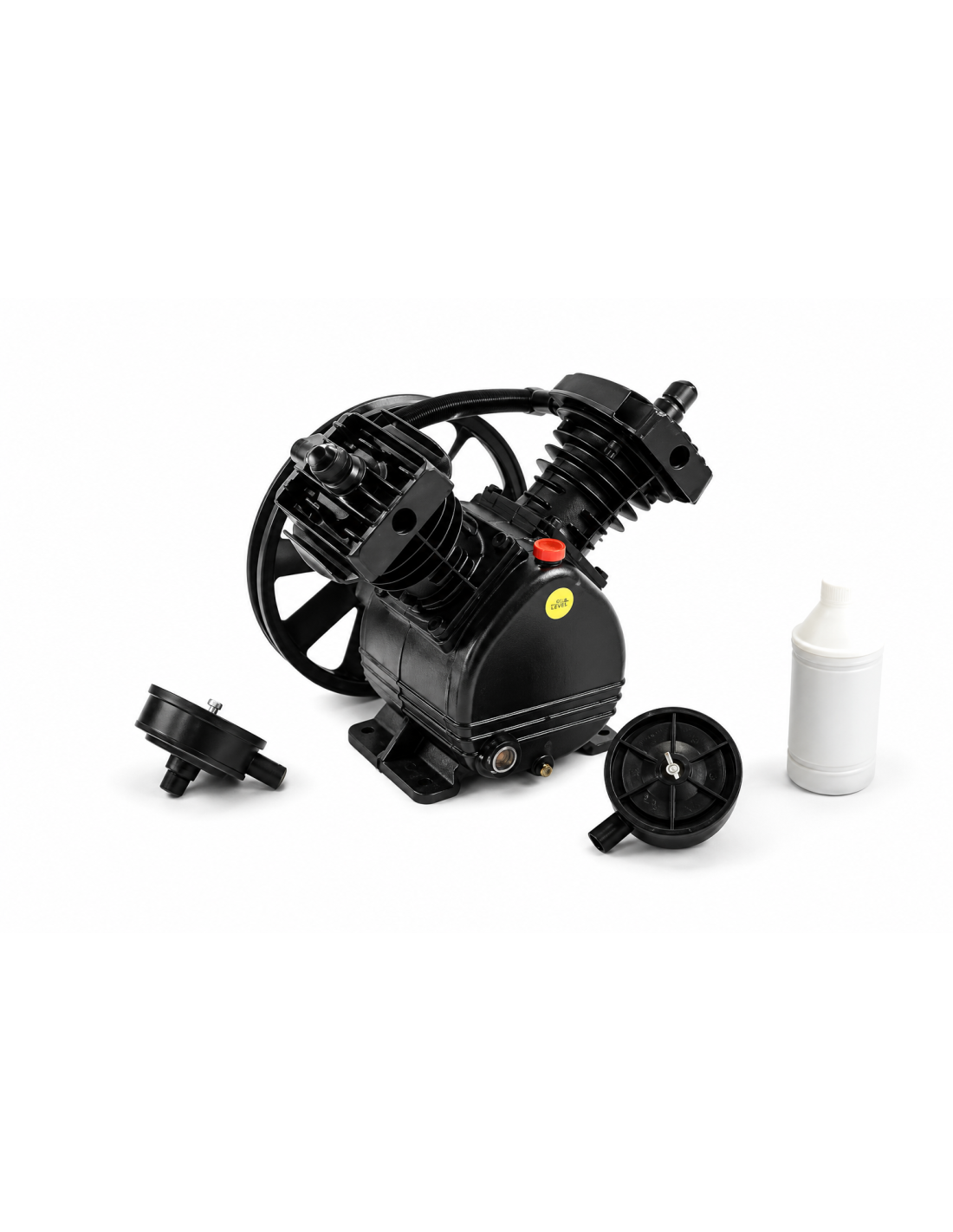

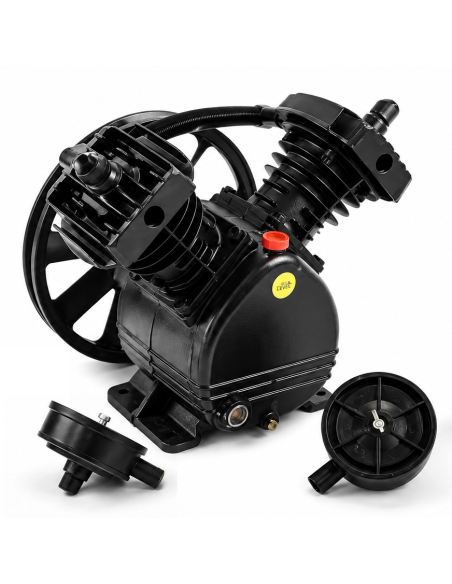

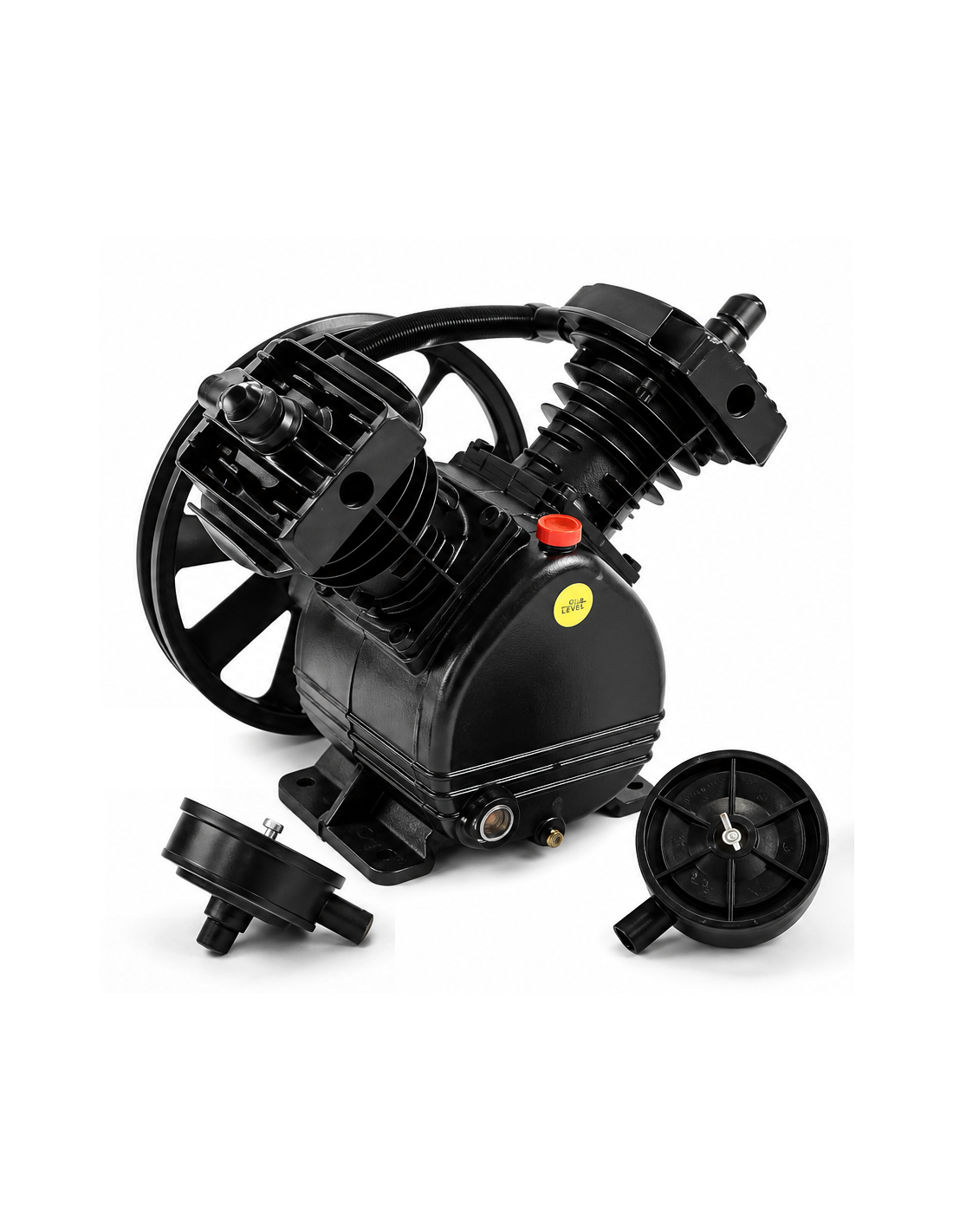

BS-PET001 Petrol Air Compressor Pump – Twin Piston V

The BS-PET001 Petrol Compressor Pump is a twin-cylinder compressor pump head designed for use with petrol-powered air compressors where mains electricity is unavailable. Its robust design makes it suitable for portable compressor builds and replacement applications, providing a practical way to create a high-capacity compressed air supply for sites, workshops and remote locations.

Featuring twin 80mm cylinders and an approximately 300mm diameter flywheel/pulley, the BS-PET001 is designed for compatibility with compressor receivers from 50 to 200 litres. It can be used as a replacement pump or incorporated into a custom petrol-driven compressor installation.

Key Features

• Twin-cylinder compressor pump for petrol-powered applications
• 80mm twin cylinder configuration for high-volume air delivery
• Approximately 300mm diameter drive wheel
• Suitable for 50, 100, 150 and 200 litre compressor tanks
• Ideal where mains electricity is unavailable
• Suitable for portable and site compressor builds
• Can be used as a replacement compressor pump
• Suitable for workshop, construction and industrial applications
• Compact solution for building or refurbishing petrol-driven compressors

Specifications

• Product Code: BS-PET001
• Product Type: Petrol Compressor Pump Head
• Cylinder Configuration: Twin Cylinder
• Cylinder Bore: 80mm x 2
• Drive Wheel Diameter: Approximately 300mm
• Compatible Receiver Sizes: 50L, 100L, 150L & 200L
• Drive Type: Belt Driven
• Application: Petrol-powered air compressors
• Mains Electricity Required: No
• Recommended Use: Portable, site, workshop and industrial compressor applications

The manufacturer's available specification is relatively limited, so I would not add unverified figures for CFM, maximum pressure, RPM, pulley bore, outlet thread or oil capacity to the product page. The supplier confirms the twin 80mm cylinders, approximately 300mm wheel and 50–200L receiver compatibility.

Typical Applications

• Petrol-powered air compressors
• Portable compressor builds
• Construction sites without mains electricity
• Agricultural applications
• Remote workshops
• Automotive and mobile workshops
• Compressor refurbishment
• Custom compressor installations
• Industrial compressed air systems

Installation & Compatibility

The BS-PET001 is intended to be paired with a suitable petrol engine and compressor receiver to create a complete belt-driven air compressor. When replacing an existing pump, check the mounting arrangement, drive-wheel dimensions, shaft configuration, belt alignment and required operating speed before installation.

The pump is suitable for compressor receivers between 50 and 200 litres, giving it considerable flexibility for both smaller portable compressor builds and larger mobile installations.

Important: The correct engine size, pulley ratio and operating speed should be established according to the pump manufacturer's requirements before commissioning the compressor. Appropriate pressure-control, safety-valve and receiver arrangements should also be used.
