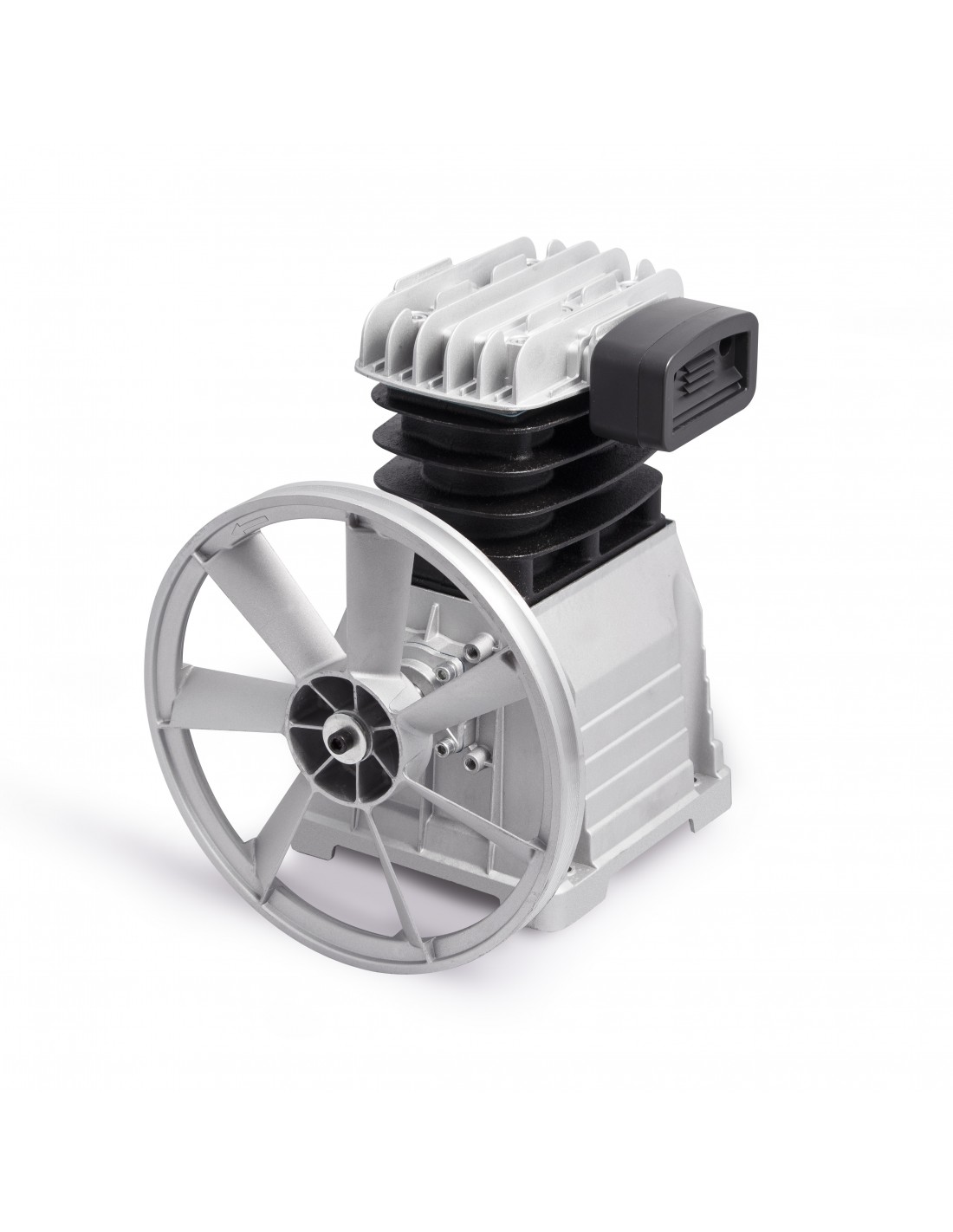

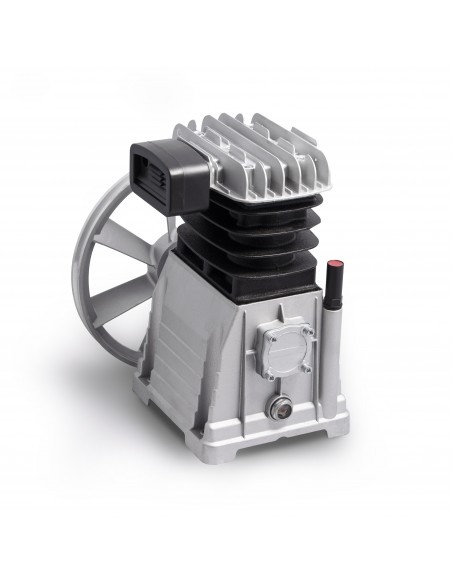

The BS3800 Compressor Air Pump is a complete replacement piston pump designed for use with 3HP (2.2kW) air compressors. Delivering up to 14 CFM displacement, this twin-piston, single-stage pump is suitable for replacing a worn or damaged compressor pump or for building a replacement compressor assembly.
The BS3800 is supplied as a complete pump assembly with a 280mm diameter pulley wheel for an A-profile belt and an air intake filter, making it a convenient replacement solution. The pump incorporates a robust aluminium cylinder head, cast iron cylinder construction and twin roller-bearing crankshaft for reliable operation.
The pump can be driven by a suitable 3HP electric motor (2800RPM-3000RPM) with an 85mm motor pulley (approximately) to achieve the required pump speed for correct CFM output. The pump is compatible with a range of 3HP piston compressor applications, although modifications to the compressor mounting plate may be required as well as a suitable air delivery pipe.
The BS3800 may be supplied either pre-filled with oil or with a separate bottle of oil, depending on stock. SAE 30 compressor oil is recommended.
Key Features
- Complete 14 CFM compressor pump assembly
- Suitable for replacing pumps on compressors rated around 3HP / 2.2kW
- Twin-piston design for high air displacement
- Supplied with 280mm pulley wheel for A-profile belts
- Includes air intake filter
- Robust aluminium cylinder head with cast iron cylinder
- Crankshaft supported by two roller-bearing assemblies
- Built-in oil level sight glass for easy oil monitoring
- Supplied with oil vent cap
- Four-point base mounting for secure installation
- Suitable for custom compressor builds as well as pump replacement
- 1/2" BSPT female compressed air outlet
- Recommended motor drive speed of approximately 2,800–3,000 RPM (85mm pulley)
Specifications
- Product Code: BS3800
- Product Type: Piston Compressor Air Pump
- Air Displacement: 14 CFM
- Recommended Motor: 3HP / 2.2kW
- Recommended Motor Pulley: Approximately 85mm
- Pump Pulley: 280mm diameter
- Belt Profile: A-Profile
- Cylinder Configuration: Twin Piston
- Cylinder Type: Single Stage
- Cylinder Material: Cast Iron
- Cylinder Head Material: Aluminium
- Crankshaft Support: Twin Roller Bearings
- Air Outlet: 1/2" BSPT Female
- Oil Level Monitoring: Sight Glass
- Oil Vent: Vent Cap Included
- Recommended Lubricant: SAE30 / ISO100
- Mounting: Four Bolt Holes
- Mounting Bolts: Not Included
- Air Filter: Included
- Outlet Delivery Pipe: Not Included
Typical Applications
- Replacement pump for 3HP air compressors
- Compressor refurbishment and repair
- Custom-built belt-drive compressors
- Workshop air compressor repairs
- Automotive workshop compressors
- Garage and engineering compressors
- Agricultural equipment
- General pneumatic air systems
DIRECT COMPATIBILITY MODELS*
BURISCH BT390T
BURISCH BT3150T
WOLF DAKOTA 100
ZIPPER ZI-COM90-10 , ZI-COM150-10, ZI-COM200-10
SGS SC90B, SC150B
*MAY FIT OTHER BRANDS OF AIR COMPRESSOR
ALTERNATIVE PART NUMBERS
BUR90351
BUR15051
* May fit the following brands: SGS WOLF PARKSIDE HAWK CLARKE TIGER AIRMASTER LIDL ALDI RHYAS COBRA DRAPER SEALEY SIP SCHEPPACH AIRMATE HYUNDAI PNEUKRAFT SIOUX CHEYENNE DAKOTA TOMAHAWK
