CBSAE30 Compressor Oil SAE30 / ISO100 is a high-quality mineral-based lubricant formulated for use in reciprocating and rotary air compressors, as well as vacuum pumps. Based on solvent-refined mineral oils and a multifunctional high-performance additive system, it provides reliable lubrication and protection under demanding operating conditions. Detergent free which is an absolute essential for air compressors to prevent premature failure to the seals and gaskets.
Its high oxidation resistance helps protect compressor components and can contribute to extended oil service life, while the low volatility helps reduce oil consumption and the need for frequent top-ups. The formulation also provides effective corrosion protection for both ferrous and non-ferrous components and resists emulsification and filter blocking.

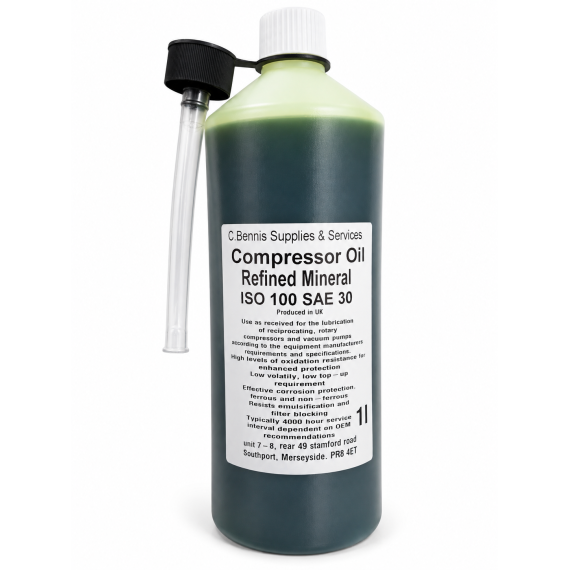

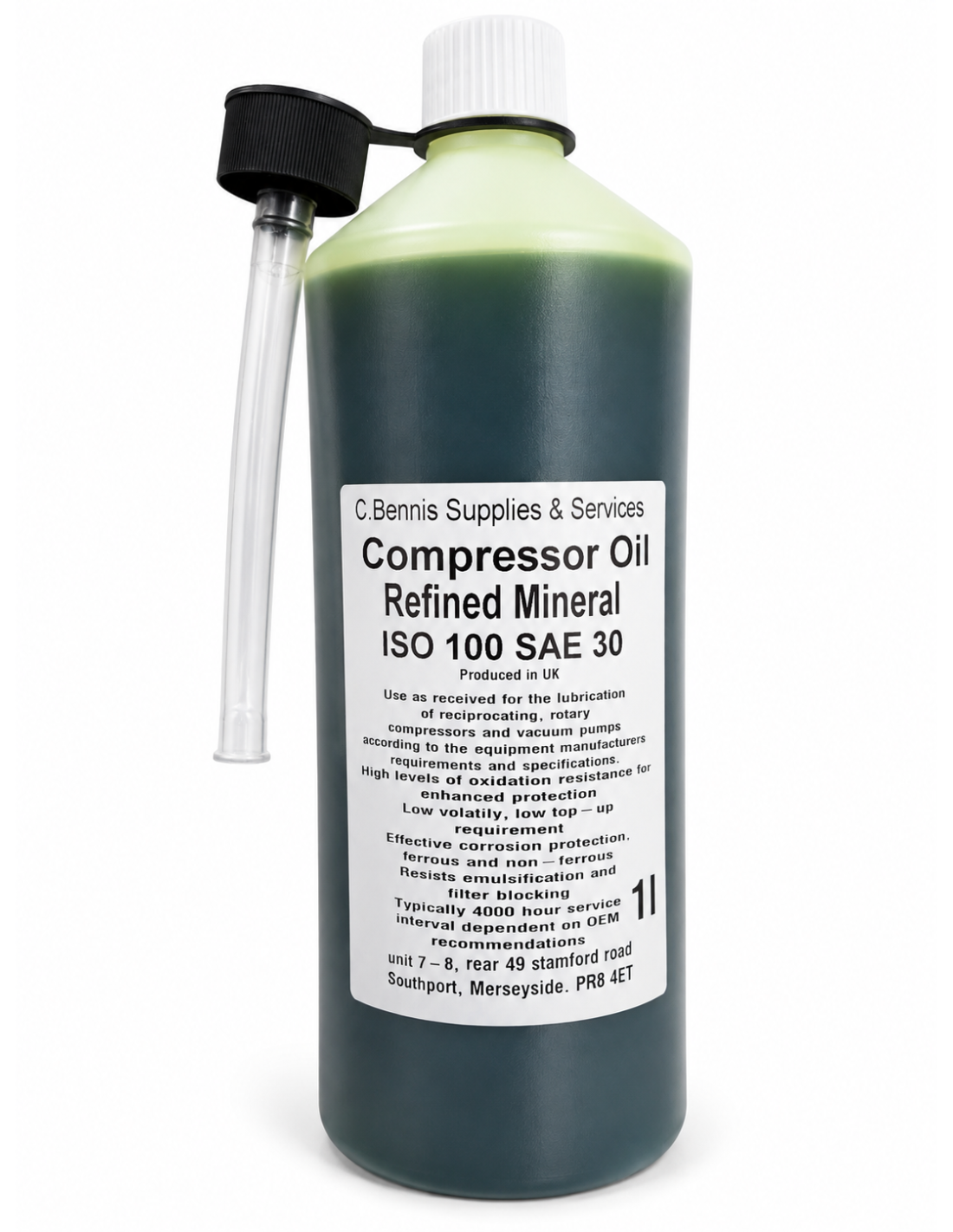

The CBSAE30 is supplied with a filling tube, making oil changes and topping up compressor oil considerably easier and cleaner.
Key Features
- SAE 30 compressor oil for a wide range of compressor applications
- Formulated from high-quality solvent-refined mineral oils
- Multifunctional high-performance additive system
- Detergent free (essential for Air Compressors)
- High oxidation resistance for enhanced component protection
- Low volatility helps reduce oil consumption and top-ups
- Effective corrosion protection for ferrous and non-ferrous components
- Resists emulsification and filter blocking
- Suitable for reciprocating and rotary compressors
- Suitable for vacuum pumps
- Now supplied with filling tube for easier oil changes and topping up
- Typical oil service interval of up to 4,000 hours, subject to OEM recommendations and operating conditions
Specifications
- Product Code: CBSAE30
- Product Type: Compressor Oil
- Viscosity Grade: SAE 30 / ISO100
- Base Oil: Solvent-Refined Mineral Oil
- Specific Gravity @ 15°C: 0.877
- Kinematic Viscosity @ 40°C: 99.8 cSt
- Kinematic Viscosity @ 100°C: 12.4 cSt
- Viscosity Index: 99
- Pour Point: -25°C
- Flash Point: 200°C
- Typical Service Interval: Up to 4,000 hours, subject to OEM recommendations
- Filling Tube: Included
- Suitable Equipment: Reciprocating compressors, rotary compressors and vacuum pumps
Industry Standards & Approvals
The oil is listed against the following standards and specifications:
- ANFOR NF E 48-603
- BS 489
- Dennison HF-0
- DIN 51354 Stage 11
- DIN 51506 VD-L
- DIN 51524 Part II
- DP 6521
- DAA / DAB / DAG / DAH
Technical data note: The published characteristics are typical average test values and may vary between production batches. They should therefore not be regarded as product specifications.
