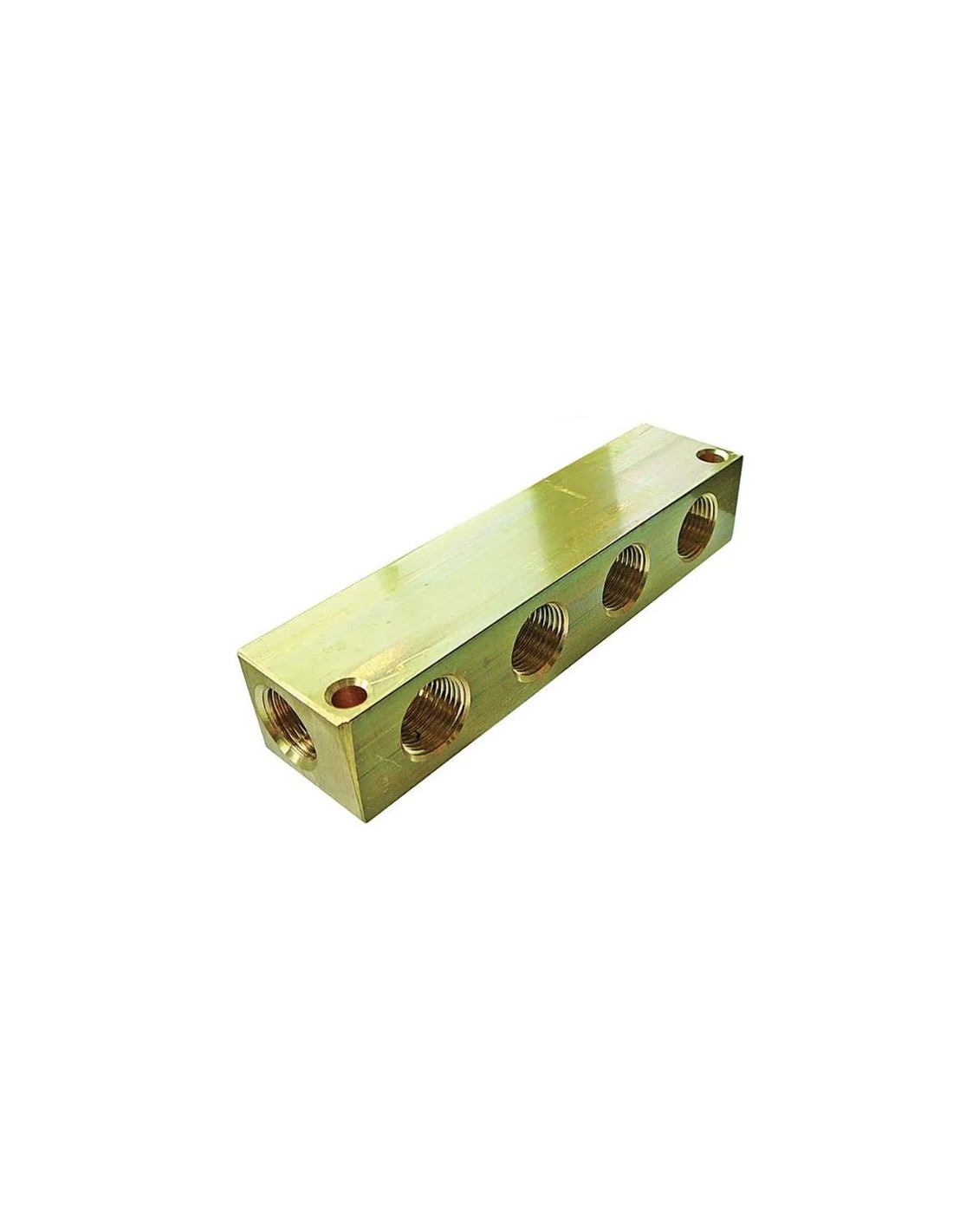

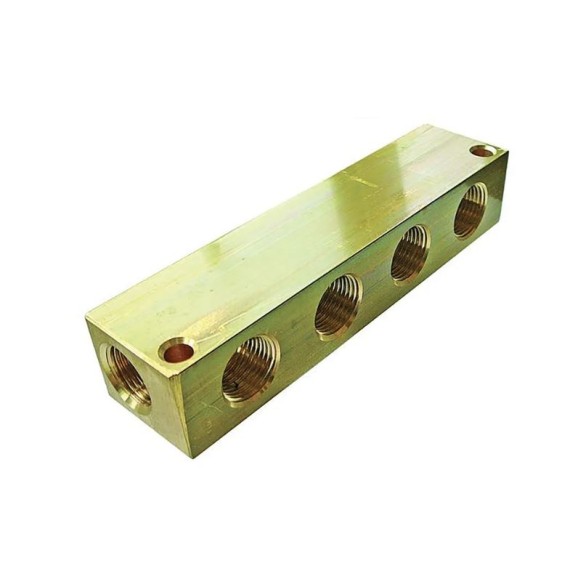

FT Pro 3/8" BSPP Female Distribution Manifold – 4 Outlet

The FT Pro 3/8" BSPP Female Distribution Manifold is a compact brass pneumatic manifold designed to distribute compressed air from a supply line to multiple outlets. Featuring two 3/8" BSPP female inlets and four 1/4" BSPP female outlets, it provides a convenient solution for connecting several pneumatic components or air lines to a common supply.

Manufactured from durable brass, this manifold is suitable for compressed air distribution in workshops, industrial installations and pneumatic systems. With a maximum working pressure of 12 bar, it offers a practical and reliable connection point for multiple air lines.

Key Features

• Four Outlet Connections: Distributes compressed air to up to four separate pneumatic lines or components.

• Dual Inlets: Two 3/8" BSPP female inlet connections for supply-line configuration flexibility.

• Brass Construction: Durable brass body suitable for pneumatic air distribution applications.

• Standard BSPP Threads: Female parallel pipe threads for compatible pneumatic fittings and connections.

• 12 Bar Maximum Working Pressure: Suitable for a range of standard compressed-air applications within the rated pressure limit.

• Compact Distribution Solution: Helps organise multiple air connections from a common supply point.

Specifications

• Brand: FT Pro

• Product Code: MB06/04/04

• Product Type: Pneumatic Distribution Manifold

• Inlet Connections: 2 × 3/8" BSPP Female

• Outlet Connections: 4 × 1/4" BSPP Female

• Body Material: Brass

• Maximum Working Pressure: 12 bar

• Application: Compressed Air Distribution
