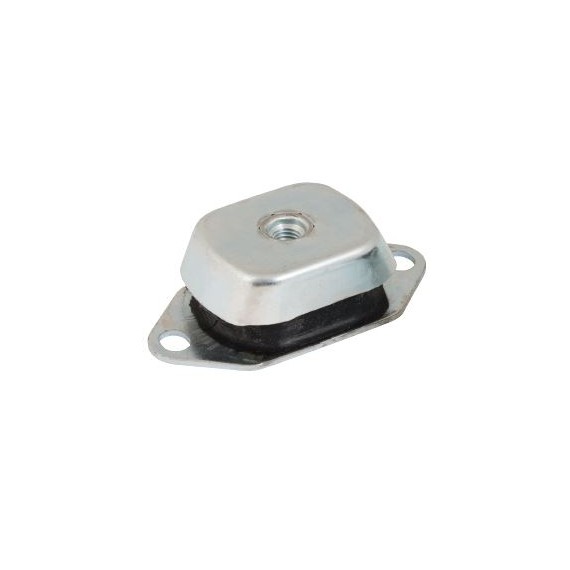

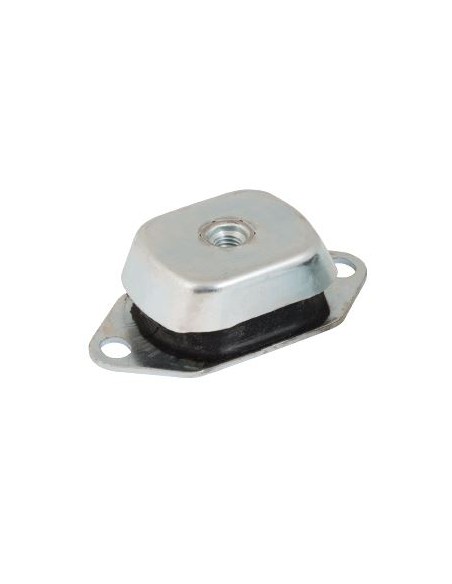

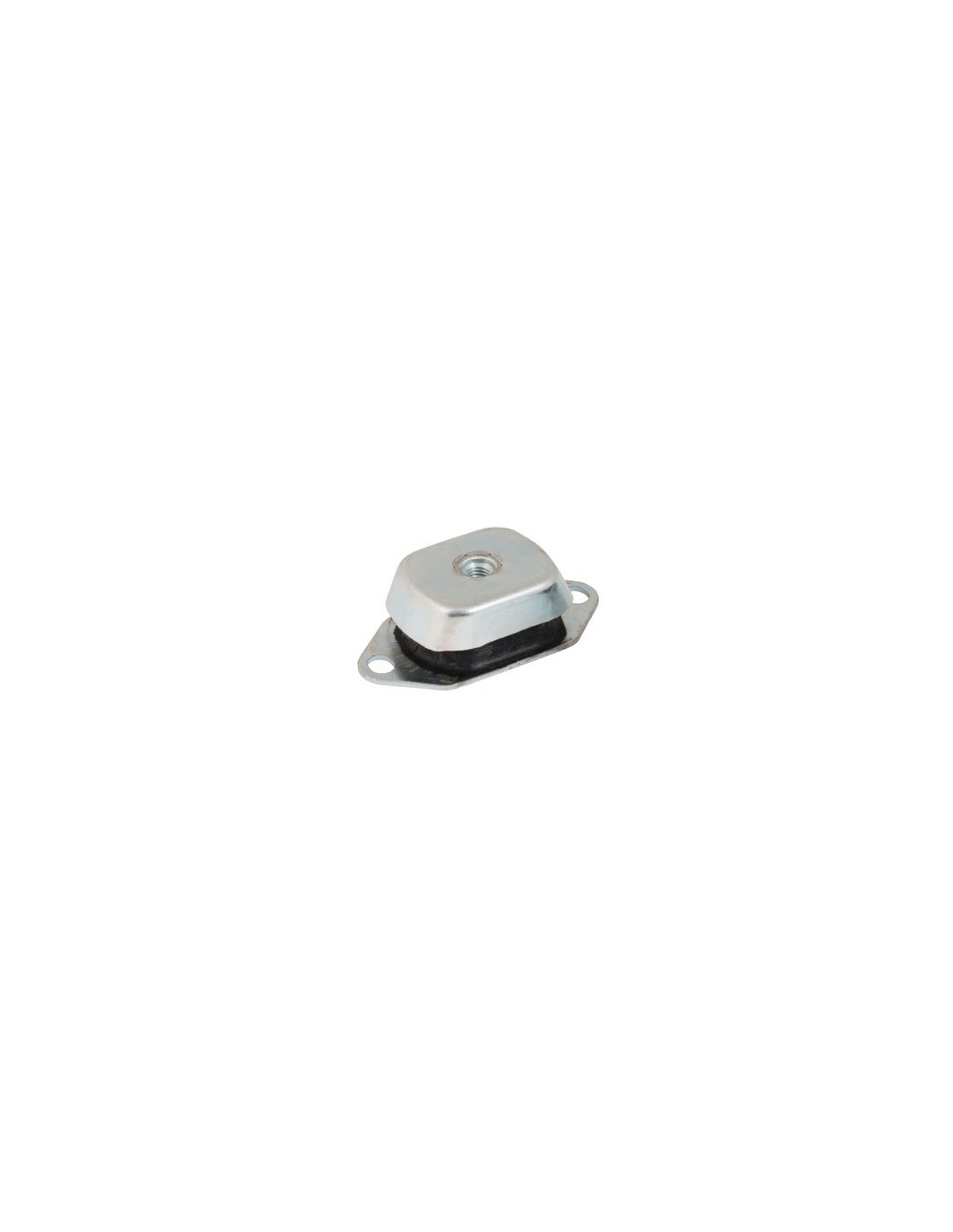

Anti-Vibration Isolation Mounting – 45SR, 80mm Rectangular

The AVM80-45 rectangular anti-vibration mount is designed to reduce vibration and shock transmission from air compressors, engines, pumps and other rotating machinery to their supporting structures. Featuring 45 IRHD natural rubber and a robust zinc-plated steel construction, this mount provides effective vibration isolation while helping to protect equipment and mounting surfaces from unwanted movement and mechanical stress.

An integral fail-safe device provides additional protection against excessive movement or mount failure, making the AVM80-45 suitable for mobile, marine and stationary installations, including applications exposed to shock or seismic forces.

Ideal for air compressor installations where vibration reduction, equipment stability and reliable mounting are important.

Key Features

• Effective Vibration Isolation: Helps reduce vibration and noise transmission from compressors and other machinery.

• 45 IRHD Natural Rubber: Provides flexible vibration isolation and shock absorption.

• Integral Fail-Safe Device: Offers additional protection against excessive movement and mount failure.

• Durable Steel Construction: Manufactured with robust steel bell and flange components.

• Zinc-Plated Finish: Provides corrosion protection for improved durability.

• Metric Threaded Fixings: Features M12 mounting threads for secure installation.

• Versatile Applications: Suitable for air compressors, diesel engines, pumps, generators and HVAC equipment.

• Compact Rectangular Design: Provides a practical mounting solution for machinery and equipment bases.

Specifications

• Product Code: AVM80-45

• Product Type: Rectangular anti-vibration engine mount

• Rubber Material: Natural rubber

• Rubber Hardness: 45 IRHD

• Steel Material: DD13 / DC04

• Surface Treatment: Zinc plated

• Thread Type: Metric coarse

• Thread Size: M12

• Mount Width (A): 80 mm

• Dimension B: 45 mm

• Dimension C: 38 mm

• Dimension P: 60 mm

• Mounting Slot Size: 14 × 11 mm

• Maximum Static Load: 36.7 kg per mount

• Maximum Operating Load: 9.2 kg per mount

• Stiffness Rate: 3.0 kg/mm

• Maximum Static Deflection: 4 mm

Please note: Select mounts according to the actual load carried by each mount and the manufacturer's specified operating limits. The maximum static load is not the same as the recommended operating load. Ensure that the mounting dimensions and fixing arrangement are suitable for your equipment before installation.
