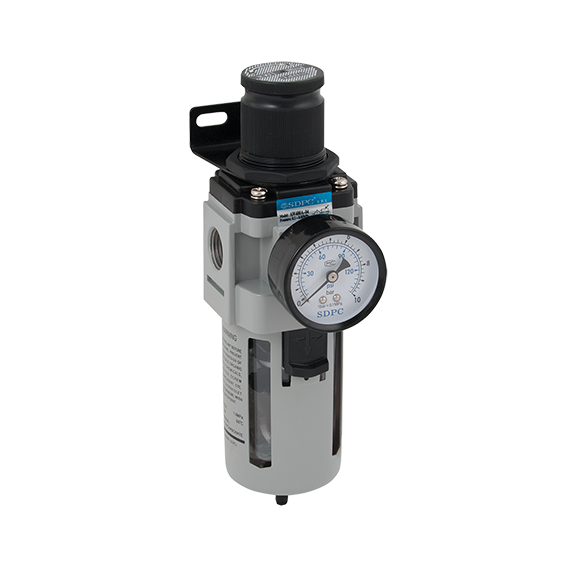

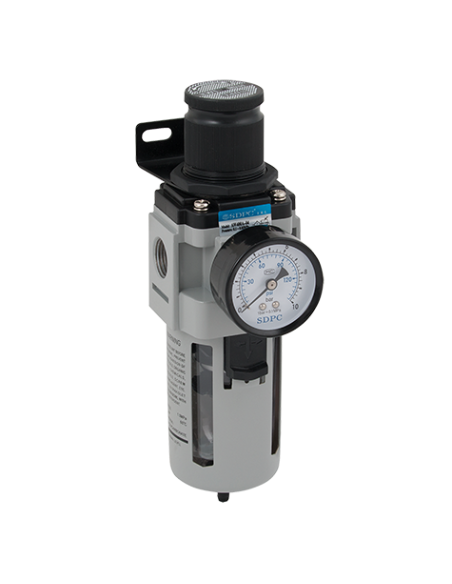

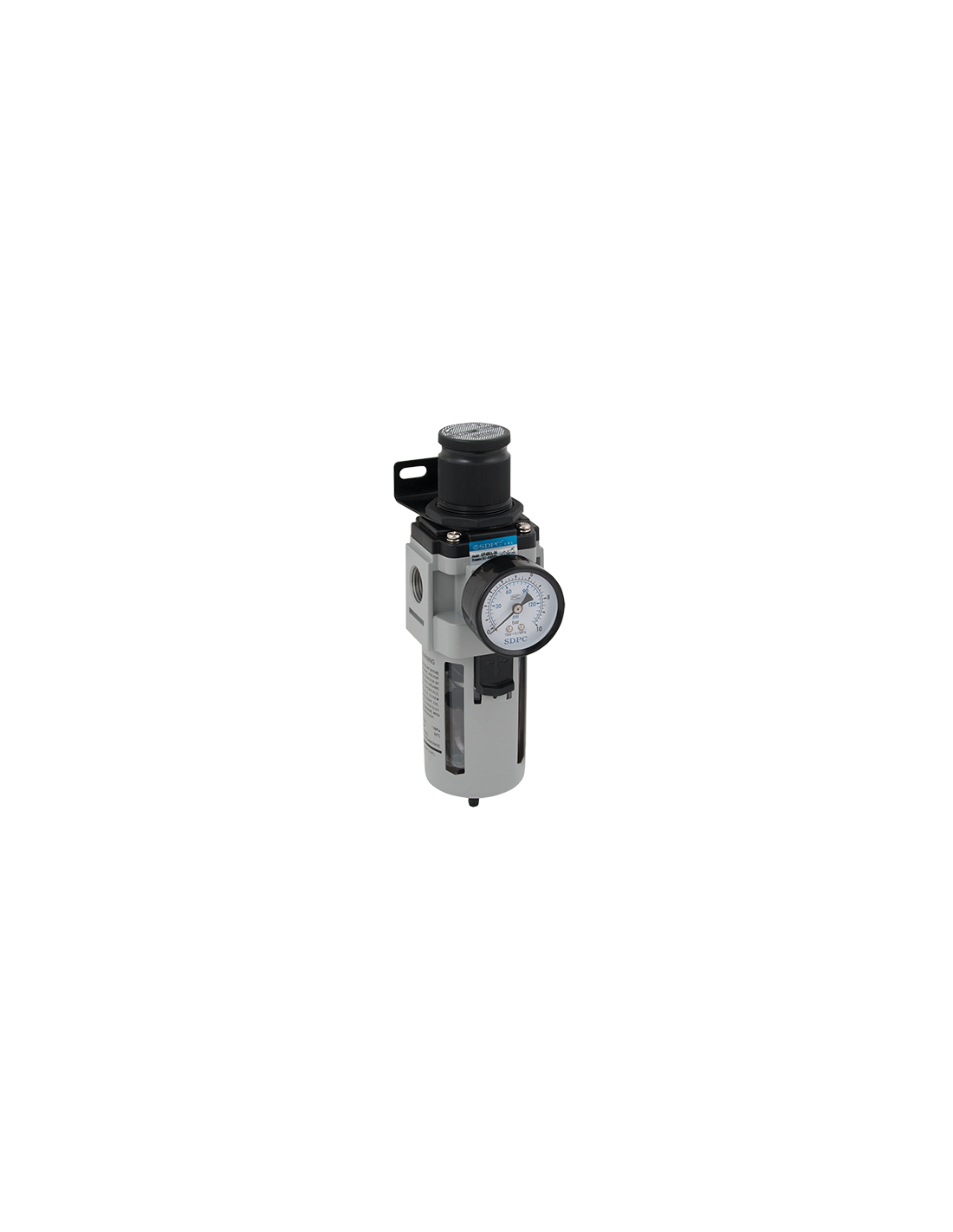

The FT Pro FM2-30-02-W Professional Mark 2 Filter Regulator is a premium compressed air preparation unit designed to remove contaminants while providing precise pressure regulation for pneumatic systems. Combining a 20-micron air filter with an integrated pressure regulator, this compact unit helps protect downstream equipment while ensuring clean, regulated compressed air for optimum system performance.
Part of the upgraded Professional Mark 2 range, the FM2-30-02-W features a strengthened metal body, an improved regulator mechanism for finer pressure control, and a larger, more durable guarded bowl for extended service life. Supplied complete with a pressure gauge and mounting bracket, it is ready for immediate installation in workshops, factories and industrial compressed air systems.
With a maximum flow rate of 1,700 litres per minute, a 10 bar maximum working pressure, and a semi-automatic drain, this filter regulator is ideal for protecting air tools, cylinders, valves and other pneumatic equipment from moisture and particulate contamination.
Key Features
- Professional Mark 2 filter regulator for clean, regulated compressed air
- High flow capacity of 1,700 litres per minute
- Integrated 20-micron filter removes moisture and airborne contaminants
- Semi-automatic drain reduces maintenance requirements
- Improved Mark 2 regulator provides enhanced pressure sensitivity and control
- Heavy-duty metal construction for long service life
- Guarded polycarbonate bowl offers additional protection
- Compact modular design allows future system expansion
- Supplied complete with pressure gauge and mounting bracket
- Ideal for workshops, manufacturing, automotive, agriculture and industrial compressed air systems

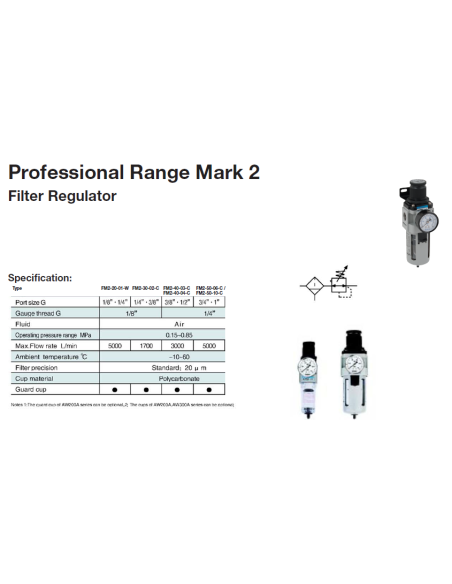

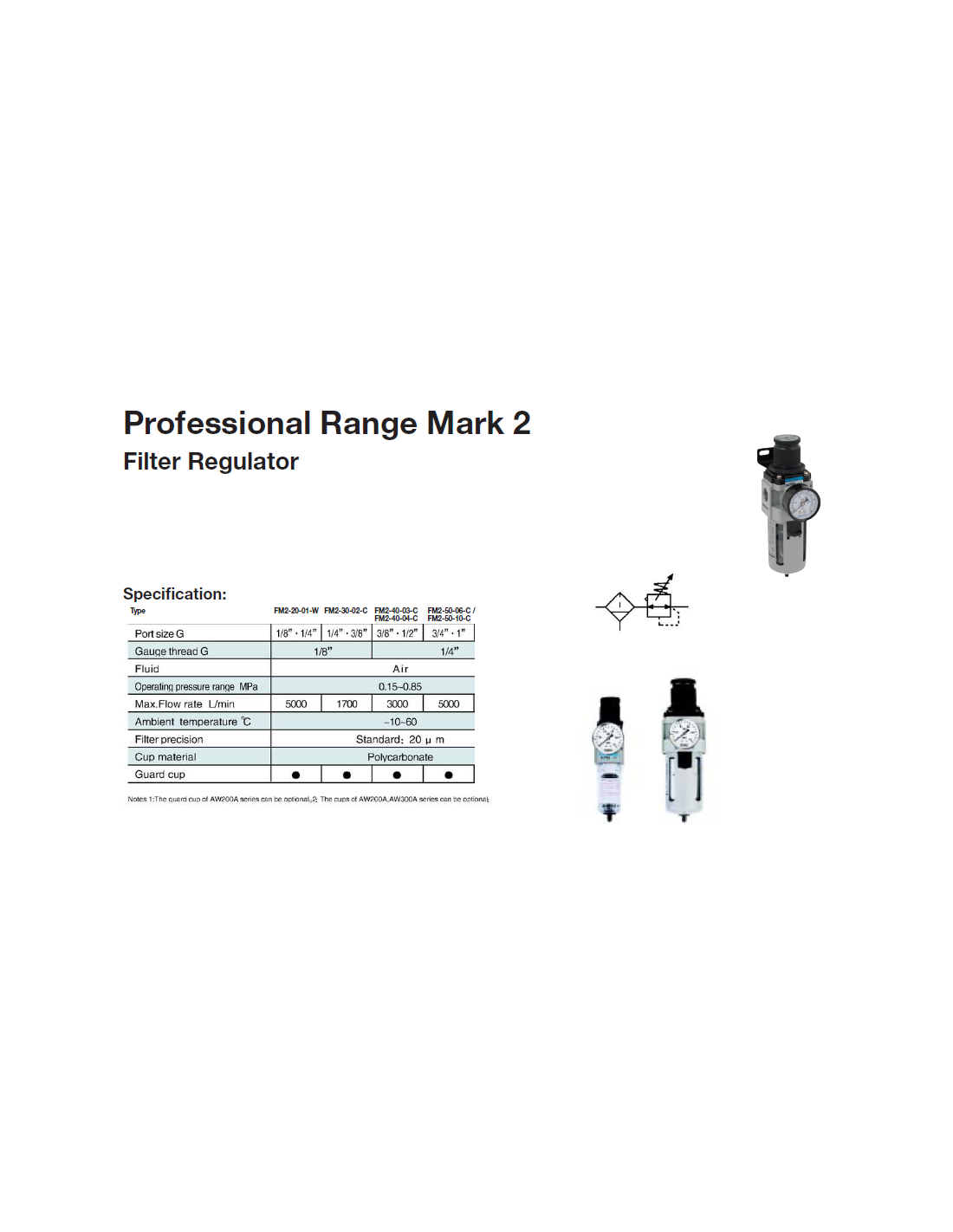

Specifications
- Model: FM2-30-02-W
- Brand: FT Pro
- Product Type: Filter Regulator
- Series: Professional Mark 2
- Port Size: 1/4" BSP Parallel (BSPP)
- Port Gender: Female
- Maximum Flow Rate: 1,700 L/min
- Filtration Rating: 20 Microns
- Maximum Working Pressure: 10 bar (145 PSI)
- Operating Pressure Range: 1.5–8.5 bar
- Working Temperature: -10°C to +60°C
- Drain Type: Semi-Automatic
- Bowl Material: Guarded Polycarbonate
- Body Construction: Heavy-Duty Metal
- Supplied With: Pressure Gauge & Mounting Bracket

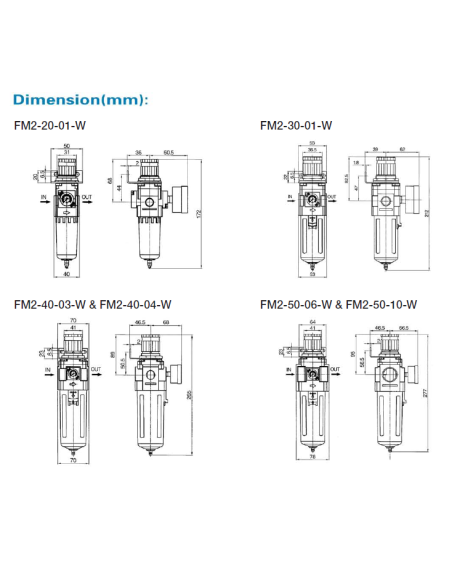

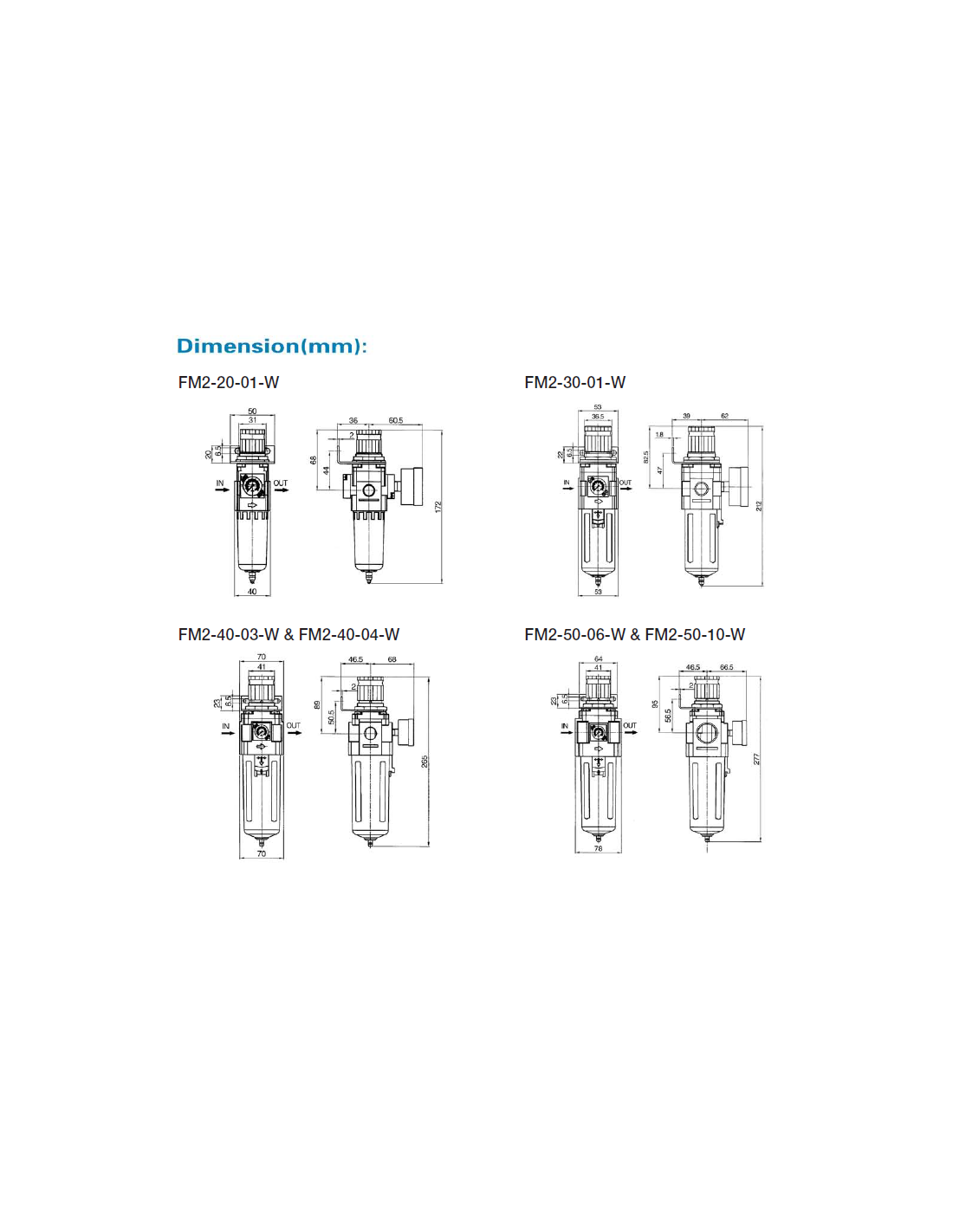

- Overall Height: 212 mm
- Body Width: 53 mm
- Typical Applications: Air compressors, pneumatic machinery, FRL systems, workshops, OEM equipment and industrial compressed air installations.
Typical Applications
- Air compressor installations
- Pneumatic control systems
- Air tools
- Manufacturing equipment
- Automotive workshops
- Agricultural machinery
- OEM machine building
- Rail engineering
- Industrial automation
- General compressed air distribution systems
Why Use a Filter Regulator?
A filter regulator performs two essential functions in one compact unit: it removes moisture and contaminants from the compressed air supply while maintaining a consistent outlet pressure. This helps protect expensive pneumatic equipment, improves tool performance, reduces maintenance costs and extends the lifespan of downstream components.
