CEJN Spiral Anti-Spark Breathing Air Hose 2m-8m Long - Various diameters

NOTE: This product is a special order, please allow up to 14 days for delivery

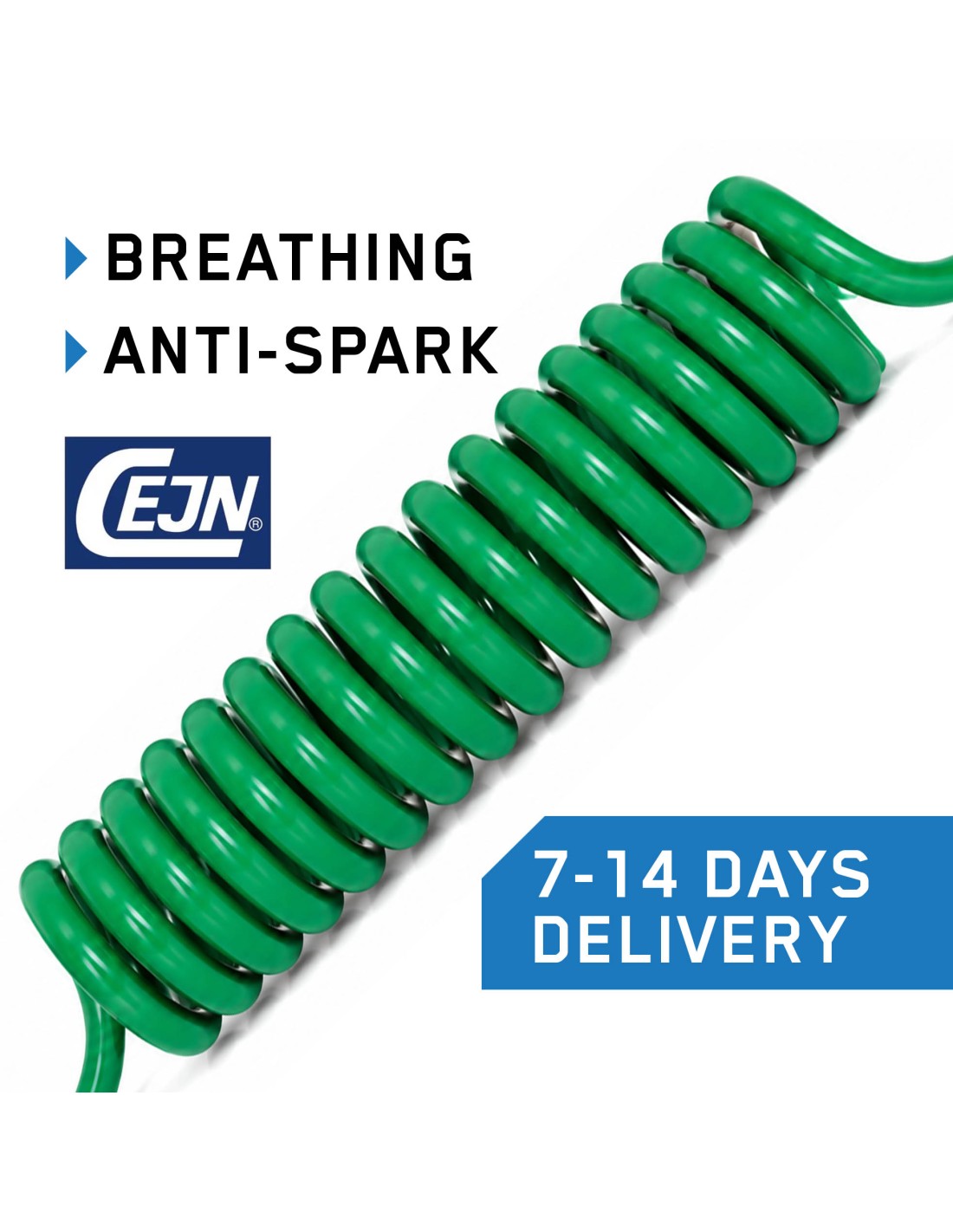

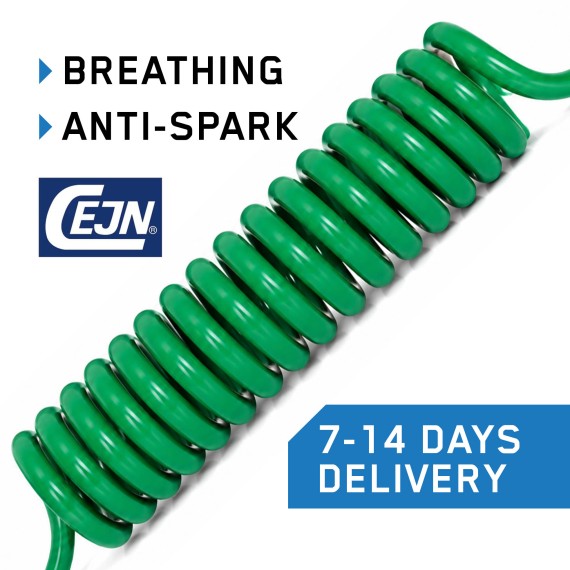

The CEJN Spiral Anti-Spark Polyurethane Hose is a lightweight, flexible coiled hose designed for breathing air applications, particularly in environments where resistance to sparks, scorching, oils and solvents is important. Manufactured from ester-based polyurethane, this hose offers excellent recoil characteristics, low friction and long service life.

This listing is offered as a variation product, allowing customers to select the required hose configuration from the dropdown menu. The available options cover two mandrel sizes and four hose lengths for each size, giving a total of 8 variations. The mandrel size refers to the inside diameter of the coiled hose.

The hose is suitable for use in welding environments, assembly lines, fixed workplaces and breathing air applications. CEJN specifies compliance with EN14594:2005 when used with approved breathing air filters.

Please note, the ends of the air hose are not fitted with any fittings, you will need to purchase 'Push-fit' style ends to insert into the ends in order to make a connection to your input/output sources.

Key Features

• Genuine CEJN Spiral Anti-Spark Polyurethane Hose
• Designed for breathing air applications
• Spark and scorch resistant
• Excellent resistance to oils, solvents and other non-aqueous solutions
• Lightweight and flexible
• Excellent recoil and recovery characteristics
• Low friction for easier handling
• Long service life with excellent ageing properties
• Suitable for welding environments and fixed workplaces
• Available in 8 different length / diameter / mandrel configurations
• Manufactured from ester-based polyurethane

Available Variations

Please select your required specification from the product variation dropdown above.

The above eight configurations are the complete set shown in the supplied CEJN technical information.

Specifications

• Brand: CEJN
• Product Type: Spiral Anti-Spark Polyurethane Tube
• Material: Ester-Based Polyurethane
• Temperature Range: -30°C to +60°C
• Standard: EN14594:2005 when used with approved breathing air filters
• Inner Diameters: 6.5 mm or 8.0 mm
• Outer Diameters: 10 mm or 12 mm
• Mandrel Sizes: 3 3/8" or 4 1/4"
• Available Lengths: 2 m, 4 m, 6 m and 8 m
• Available Variations: 8
• Anti-Spark: Yes
• Scorch Resistant: Yes
• Breathing Air Suitable: Yes, when used with approved breathing air filters
• Oil & Solvent Resistance: Excellent
• Recoil: Excellent

Important Breathing Air Information

CEJN states that the hose is applicable to EN14594:2005 when used with approved breathing air filters. The hose itself should therefore be considered as one component of a compliant breathing air system rather than as a complete breathing air filtration solution.

Typical Applications

• Breathing air systems
• Welding environments
• Assembly lines
• Fixed workplace air systems
• Workshop breathing air equipment
• Applications requiring spark-resistant air hose
• Pneumatic installations where resistance to oils and solvents is required
