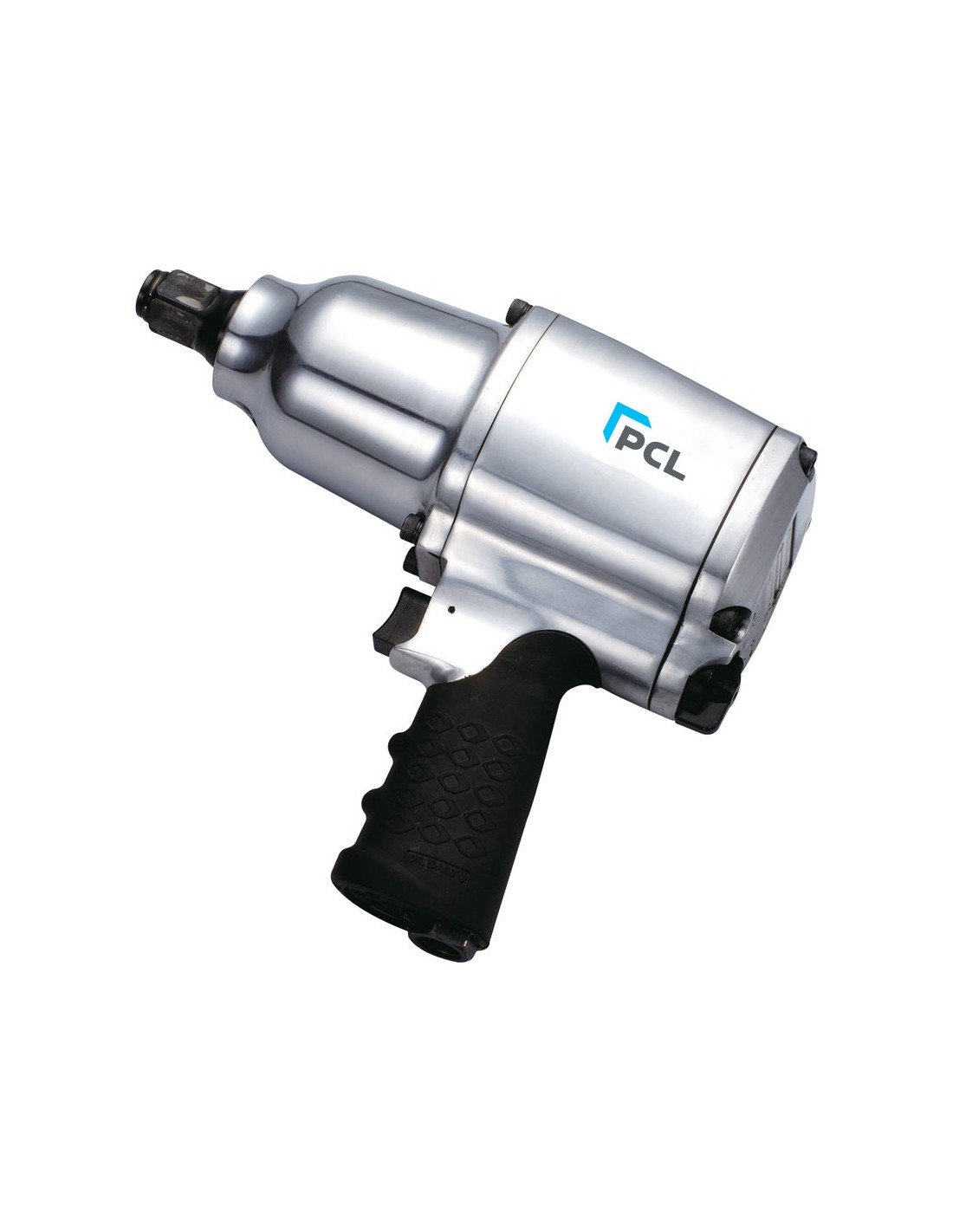

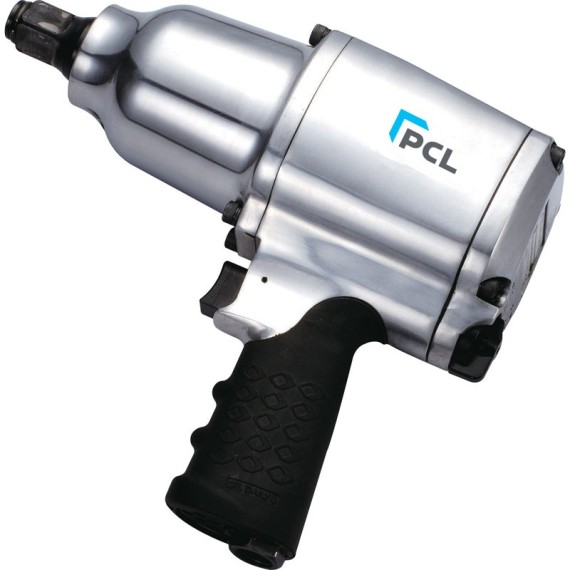

PCL 3/4" Impact Wrench – APT230

The PCL APT230 3/4" Impact Wrench is a robust, professional-grade pneumatic impact wrench developed for demanding commercial and industrial applications. Delivering up to 1,350 Nm of peak torque, it is ideally suited to servicing trucks, buses, agricultural equipment, construction machinery and other heavy-duty vehicles where high fastening power is essential.

Built around a durable aluminium housing, the APT230 combines strength with a manageable weight, making it comfortable to use throughout the working day. Its reliable pin clutch hammer mechanism delivers consistent, repeatable torque, while the ergonomic rubber-coated grip and single-handed forward/reverse selector provide excellent control and ease of operation.

Designed for busy workshops and fleet maintenance environments, the APT230 offers the durability, performance and reliability expected from PCL, making it an excellent choice for professionals who require dependable power every day.

Key Features

• Delivers up to 1,350 Nm of peak torque
• Heavy-duty 3/4" square drive for larger fasteners
• Proven pin clutch hammer mechanism for reliable performance
• Durable aluminium body built for professional workshop use
• Comfortable rubber-coated ergonomic grip
• Single-handed forward and reverse direction selector
• Three forward power settings for improved fastening control
• Rear exhaust directs air away from the operator
• Ideal for trucks, buses, agricultural machinery, trailers and heavy equipment
• Designed for professional workshops, fleet maintenance and industrial engineering

Specifications

• Model: APT230
• Drive Type: 3/4" Square Drive
• Peak Torque: 1,350 Nm
• Impact Mechanism: Pin Clutch Hammer
• Operating Speed: 4,000 RPM (Free Speed)
• Average Air Usage: 283 l/min (10 CFM)
• Compressed Air Inlet: 3/8" BSP
• Minimum Hose Size: 13 mm (1/2")
• Working Pressure: 6.2 bar (90 PSI)
• Housing Material: Aluminium
• Grip Style: Rubber-Coated Ergonomic Handle
• Direction Control: Single-Handed Forward & Reverse
• Forward Power Settings: 3
• Air Exhaust: Rear Handle Exhaust
• Overall Length: 257 mm
• Tool Weight: 4.5 kg
• Noise Emission: 108 dBA
• Vibration Rating: 4.96 m/s²
• Typical Applications: HGV wheel removal, bus maintenance, agricultural machinery, construction equipment, trailers and industrial maintenance.
