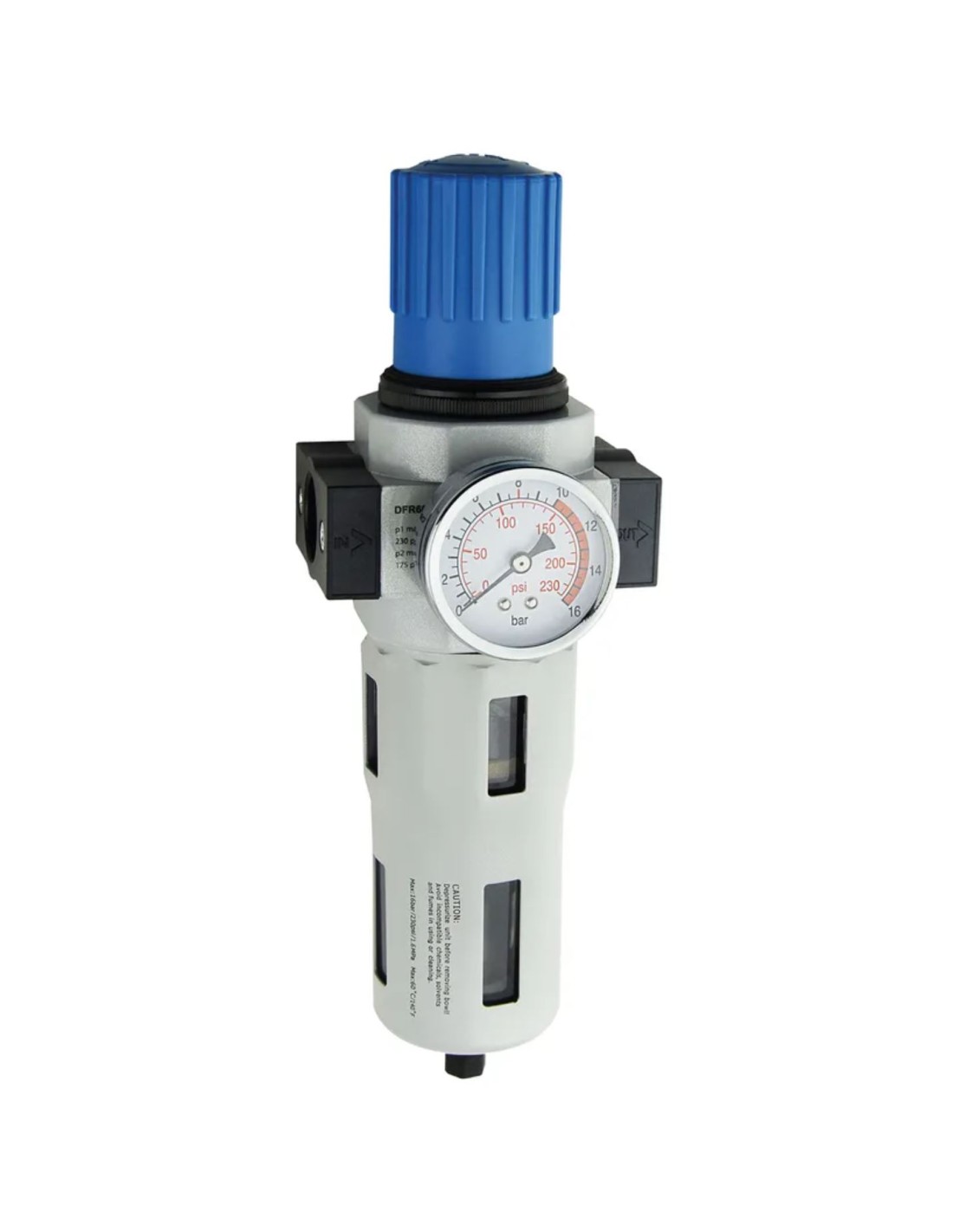

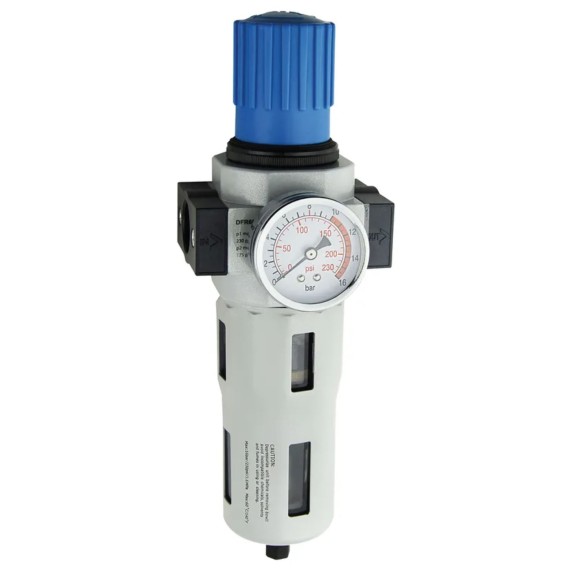

SDPC 3/4" Filter regulator Auto-Drain DFR400-06D

The FT Pro DFR400-06D Filter Regulator is a high-performance compressed air preparation unit designed to deliver clean, regulated air for demanding industrial and workshop applications. Combining efficient filtration with accurate pressure regulation, it helps protect pneumatic equipment whilst ensuring consistent system performance.

Featuring a durable metal bowl and a 40-micron filter element, this unit effectively removes water, dirt and airborne contaminants from your compressed air supply. The integrated automatic drain continuously expels collected moisture, reducing maintenance requirements and helping to maximise equipment life.

With a high flow capacity of up to 3,500 litres per minute, the DFR400-06D is ideal for larger pneumatic systems and air tools requiring reliable airflow. Supplied complete with a pressure gauge and mounting bracket, installation is quick and straightforward.

Built for long-term reliability, the regulator operates across a temperature range of -10°C to +60°C and is rated for a maximum working pressure of 12 bar.

Features

• Combines air filtration and pressure regulation in one compact unit.
• Durable metal bowl for increased strength and longevity.
• 40-micron filter removes water and airborne contaminants.
• Automatic drain reduces maintenance and removes collected moisture.
• High flow capacity suitable for demanding pneumatic applications.
• Supplied complete with pressure gauge and mounting bracket.
• Ideal for workshops, manufacturing, garages and industrial compressed air systems.

Specifications

• Brand: FT Pro
• Model: DFR400-06D
• Connection: 3/4" BSP Parallel Female
• Filter Element: 40 Micron
• Flow Rate: 3,500 L/min
• Maximum Working Pressure: 12 Bar
• Working Temperature: -10°C to +60°C
• Drain Type: Automatic
• Bowl Material: Metal
• Includes: Pressure Gauge & Mounting Bracket
