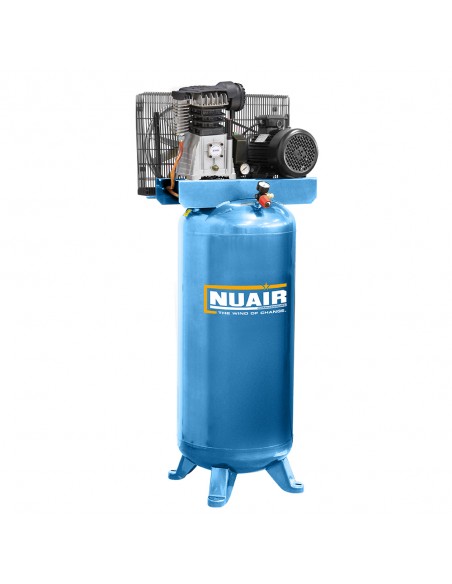

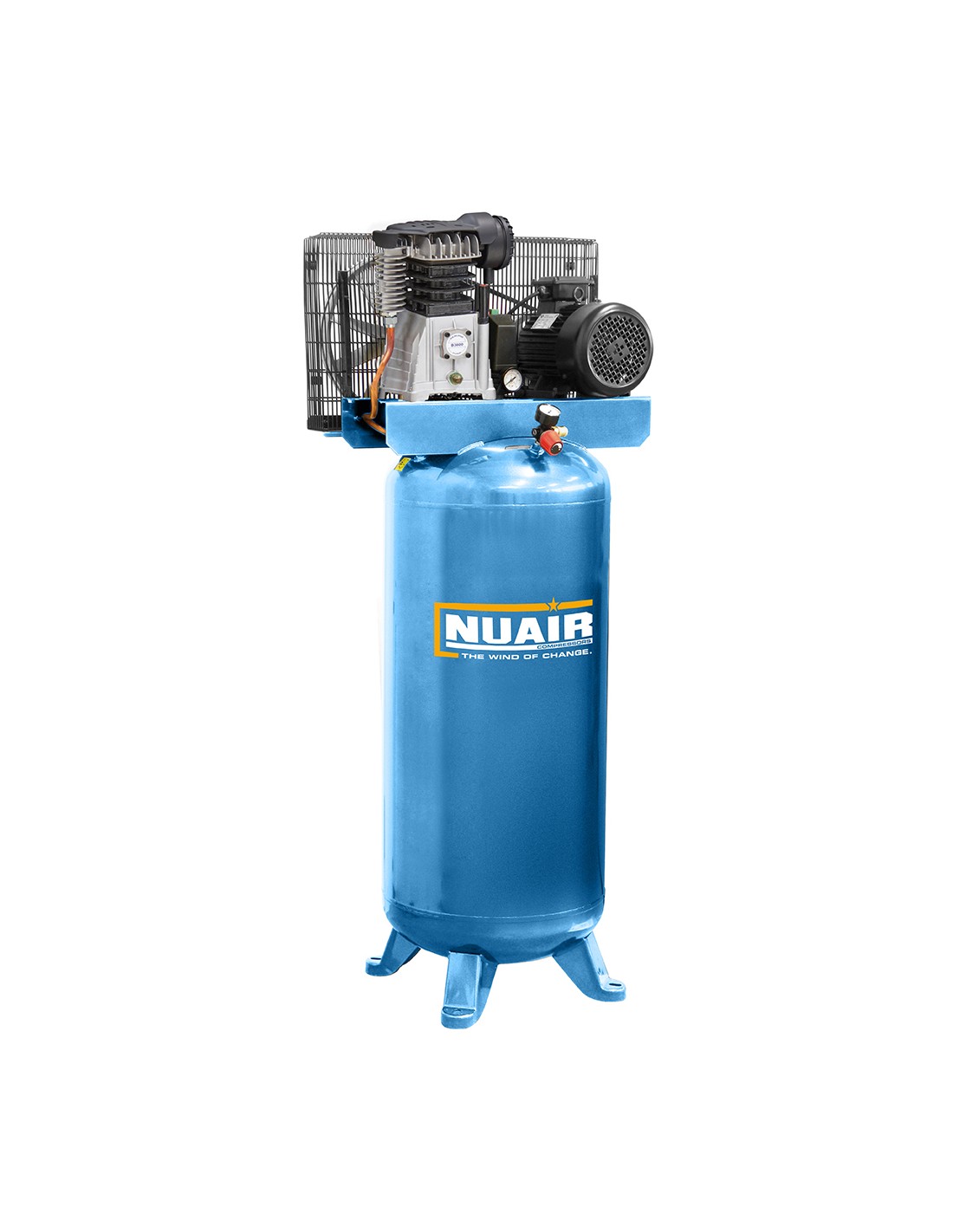

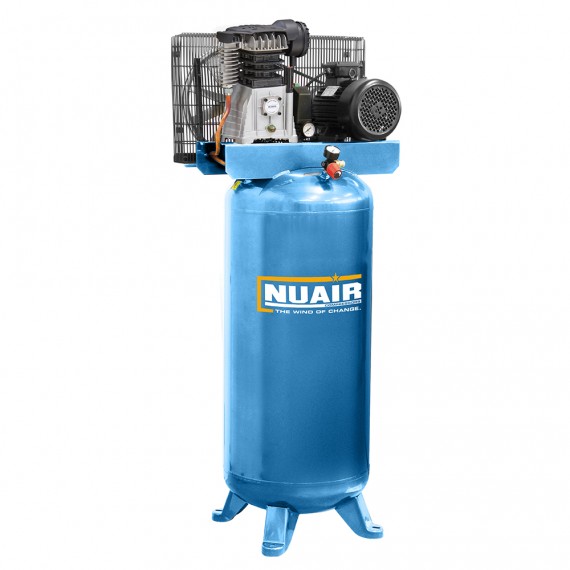

NuAir B3800B-PRO/150V FM4 - PRO VERTICAL STATIONARY 20AMP Air Compressor

B3800B-PRO/150V FM4 - Vertical Stationary 10 Bar, 150Lt Receiver, 230v

The NB3800B/150V FM4 is a popular workshop belt drive compressor suitable for various applications. The proven design ensures reliability and continued performance. Ideal for workshops and applications with access to a Single Phase 20amp power supply.

HIGHLIGHTS:

• Fitted with proven B38B single stage lubricated compressor pump unit.
• Advanced cooling system that directs cooling air to the head, valves and after-cooler for lower temperatures.
• Belt driven arrangement allows lower speed operation and reduced noise levels.
• Economical stop/start control.
• Large Vertical 150Lt air receiver to CE standards.
• High quality electric motor, 3kW (4Hp) 230v/3/50hz with full overload protection.
• Capacity 495 L/min maximum displacement, pressure 10 Bar (145 psi).
• Two Year Warranty On Pump T&C Apply.

SPECIFICATION

• kW: 3
• Hp: 4
• L/min: 495
• c.f.m: 18
• Bar: 10
• Psi: 145
• Receiver Size: 150Lt
• Volt: 230
• Kg: 118
• Product L x W x H (mm): 760 x 600 x 1980
• Type (Oil-Free/ Lubricated + Electric/Petrol): Stationary
