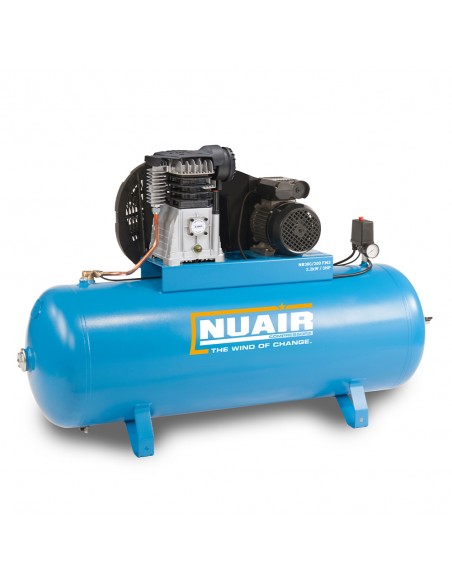

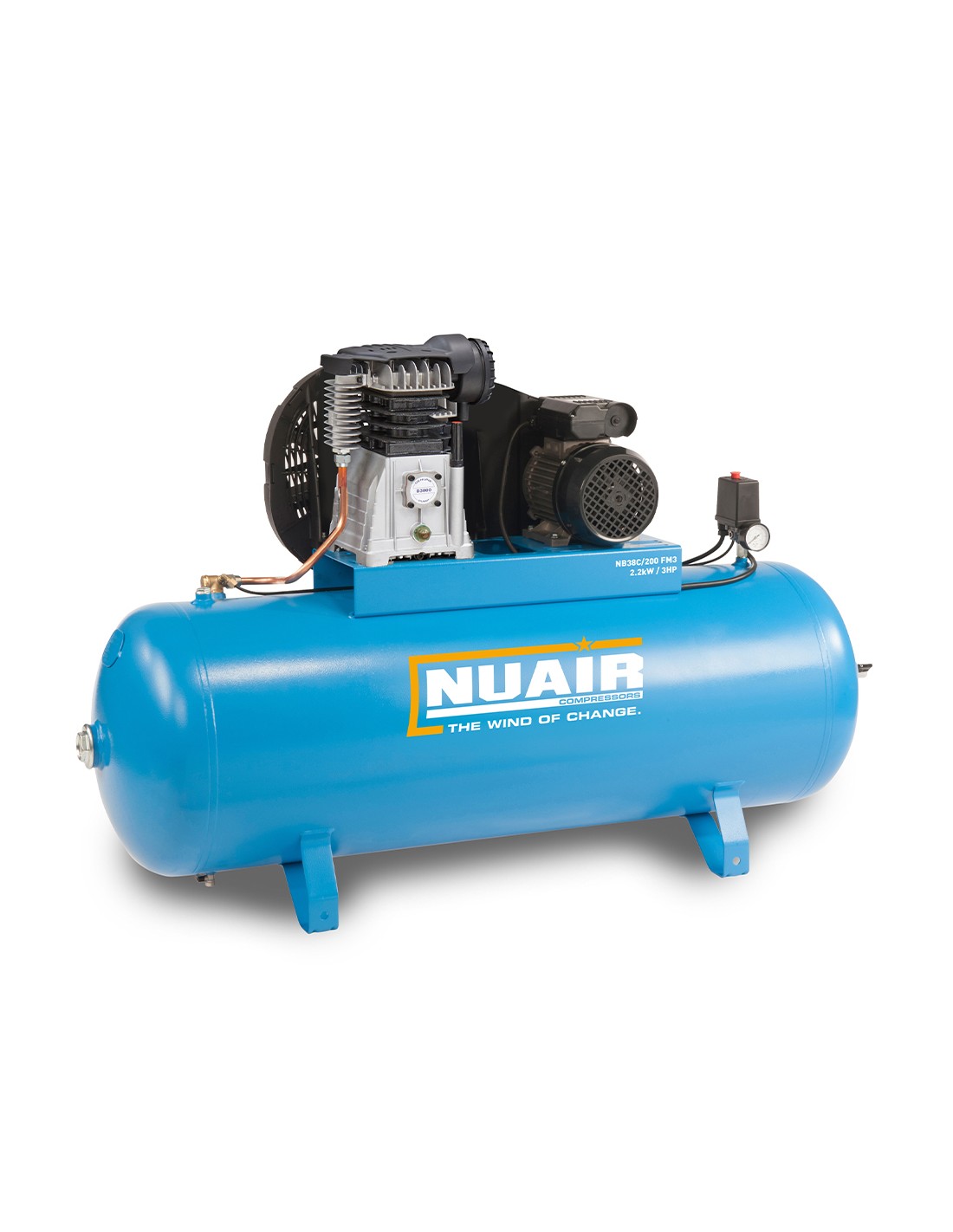

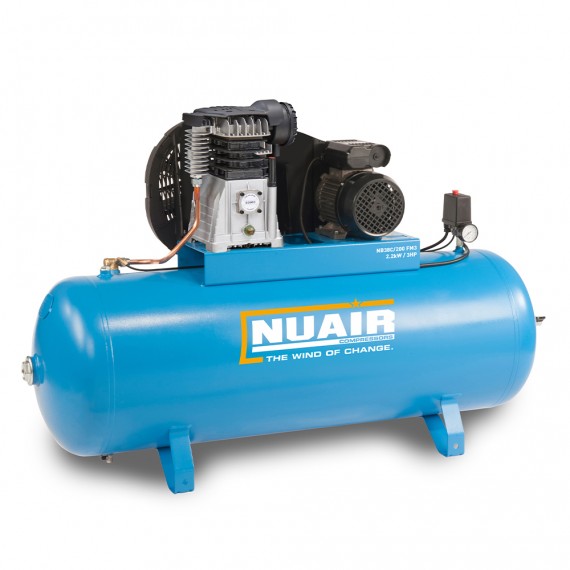

NuAir B3800B-PRO/200 FM3 UK - STATIONARY (16A) Air Compressor

LOW NOISE NB38C/200 FM3 PRO. 2.2kW/3Hp 10 Bar, 200Lt Receiver, 230v

The NB 38C/200 CM3 is a popular workshop belt drive compressor suitable for various applications. The proven design ensures reliability and continued performance. Ideal for workshops and applications limited to a 230v power supply,

HIGHLIGHTS:

• Fitted with proven LOW NOISE B38B single stage lubricated compressor pump unit.
• Advanced cooling system that directs cooling air to the head, valves and after-cooler for lower temperatures.
• Belt driven arrangement allows lower speed operation and reduced noise levels.
• Economical stop/start control.
• Fitted to a larger 200Lt Air Receiver to CE standards.
• High quality electric motor, 2.2kW (3Hp) 230v/1/50hz with full overload protection.
• Capacity 395L/min maximum displacement, pressure 10 Bar (145 psi).
• Two Year Warranty On Pump T&C Apply.

SPECIFICATION

• kW: 2.2
• Hp: 3
• L/min: 395
• c.f.m: 13.9
• Bar: 10
• Psi: 145
• dB(A): 72
• Receiver Size: 200Lt
• Volt: 230
• Product L x W x H (mm): 1450 x 550 x 980
• Kg: 103
• Type (Oil-Free/ Lubricated + Electric/Petrol): Stationary (16A)
