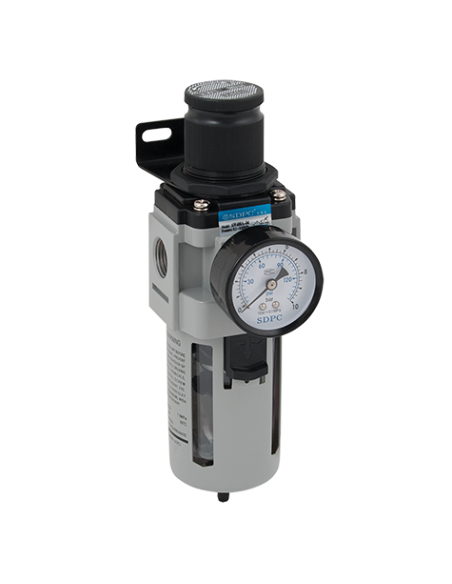

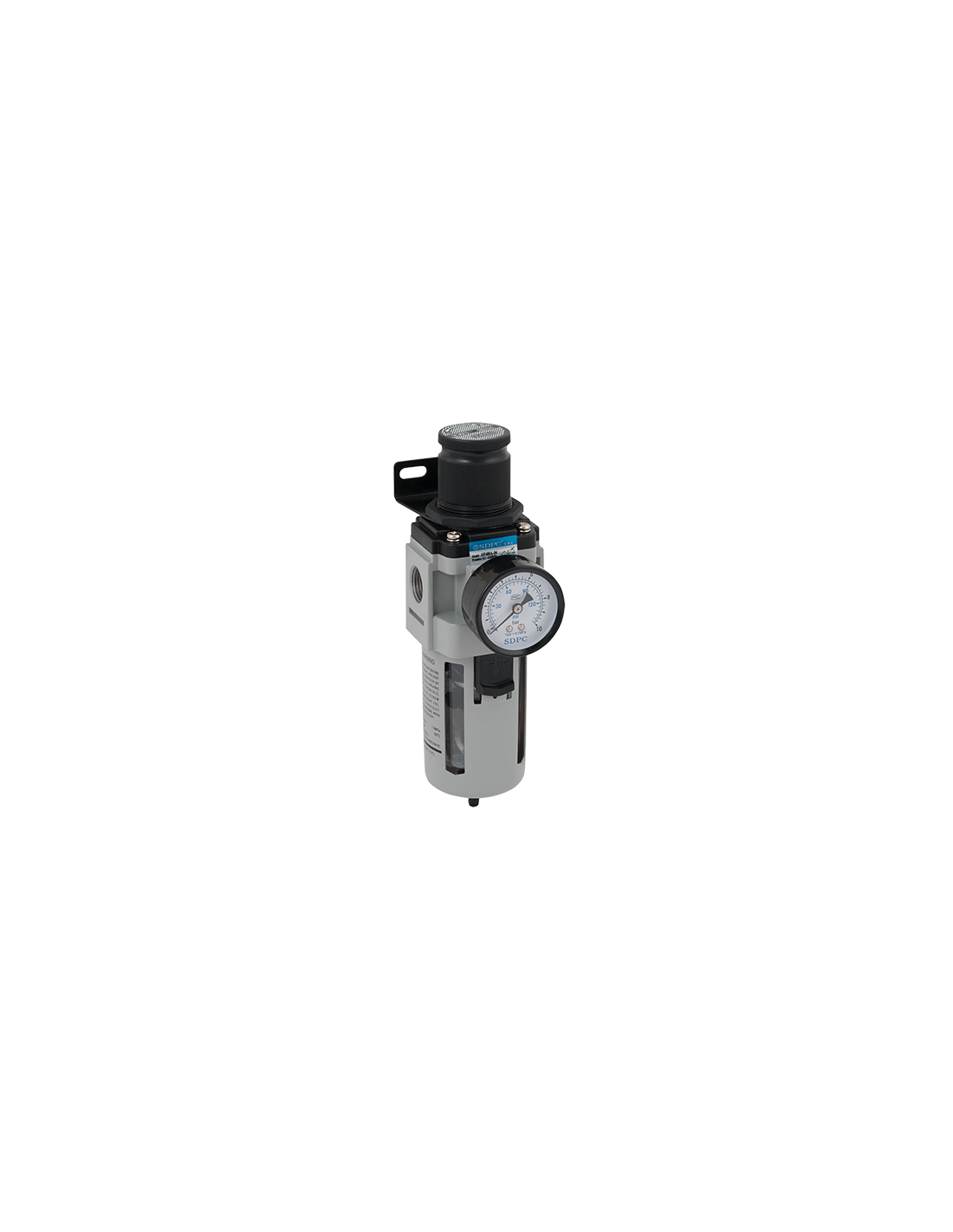

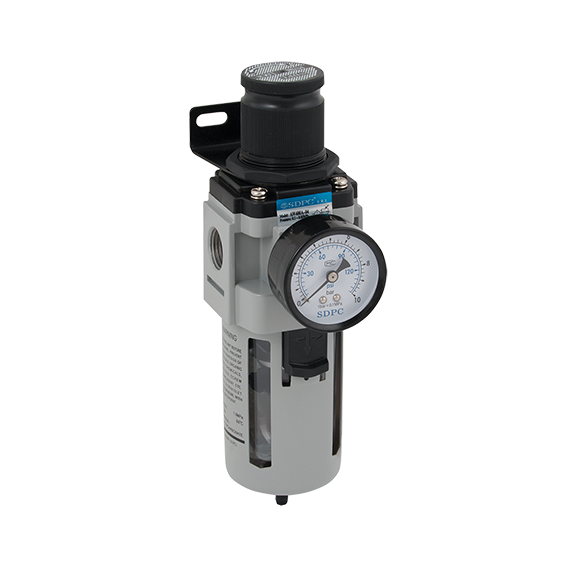

The FT Pro FM2-40-04-W Professional Mark 2 Filter Regulator is a premium compressed air preparation unit designed to supply clean, accurately regulated compressed air for demanding pneumatic applications. Combining a 20-micron particulate filter with a precision pressure regulator, it effectively removes moisture and contaminants while maintaining a stable outlet pressure, helping to protect downstream equipment and maximise system performance.
Part of the upgraded Professional Mark 2 range, the FM2-40-04-W features a reinforced metal construction, an enhanced regulator mechanism for improved pressure sensitivity, and a larger guarded polycarbonate bowl for increased durability and longer service life. Supplied complete with a pressure gauge and mounting bracket, it offers a convenient, ready-to-install solution for workshops, manufacturing facilities and industrial compressed air systems.
With 1/2" BSP Parallel female ports, a 3,000 litres per minute flow capacity, 10 bar maximum working pressure, and a semi-automatic drain, this filter regulator is ideal for medium to high-flow compressed air systems where clean, consistent air pressure is essential.
Key Features
- Professional Mark 2 filter regulator for clean, regulated compressed air
- 1/2" BSP Parallel (BSPP) female ports
- High flow capacity of 3,000 litres per minute
- Integrated 20-micron filter removes moisture and airborne contaminants
- Semi-automatic drain reduces routine maintenance
- Enhanced Mark 2 regulator provides improved pressure sensitivity and stability
- Heavy-duty metal body designed for industrial environments
- Guarded polycarbonate bowl offers increased impact protection
- Modular design allows easy integration into existing FRL systems
- Supplied complete with pressure gauge and mounting bracket
- Suitable for construction, agriculture, mining, OEM machinery, automotive, rail and industrial applications

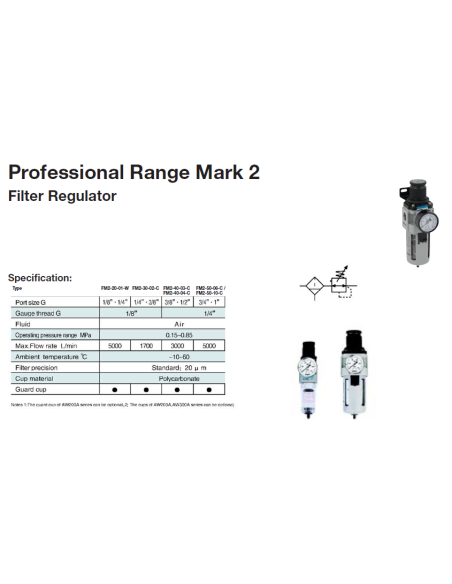

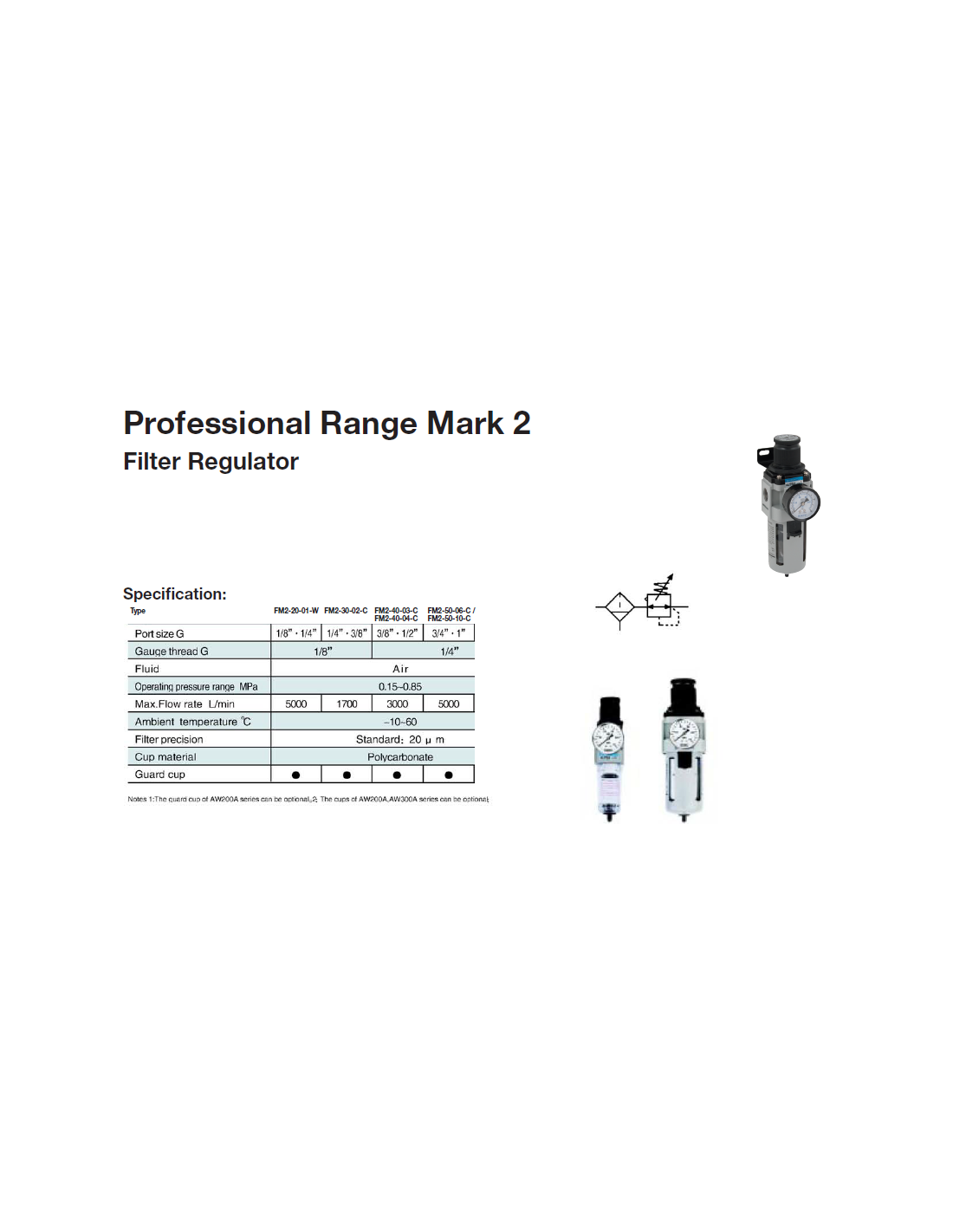

Specifications
- Model: FM2-40-04-W
- Brand: FT Pro
- Series: Professional Mark 2
- Product Type: Filter Regulator
- Port Size: 1/2" BSP Parallel (BSPP)
- Port Gender: Female
- Maximum Flow Rate: 3,000 L/min
- Filtration Rating: 20 Microns
- Operating Pressure Range: 1.5–8.5 bar
- Maximum Working Pressure: 10 bar (145 PSI)
- Working Temperature: -10°C to +60°C
- Drain Type: Semi-Automatic
- Bowl Material: Guarded Polycarbonate
- Body Construction: Heavy-Duty Metal
- Supplied With: Pressure Gauge & Mounting Bracket
- Modular System: Yes
- Typical Applications: Compressed air systems, air compressors, pneumatic machinery, FRL assemblies, OEM equipment and industrial automation.
Typical Applications
- Air compressor installations
- Pneumatic production equipment
- Air tools
- Manufacturing plants
- Automotive workshops
- Agricultural machinery
- Mining equipment
- OEM machine building
- Rail engineering
- Industrial automation
Why Use a Filter Regulator?
A filter regulator combines filtration and pressure regulation into one compact assembly, removing moisture and contaminants while delivering a consistent operating pressure. This improves pneumatic system efficiency, protects expensive downstream components, extends equipment life and helps reduce maintenance costs.
