The FT Pro FM2-40-03-W Professional Mark 2 Filter Regulator is a high-capacity compressed air preparation unit designed to deliver clean, accurately regulated air to pneumatic systems. Combining a 20-micron filter with a precision pressure regulator, it removes moisture and airborne contaminants while maintaining a stable operating pressure, helping to maximise the performance and lifespan of downstream equipment.
As part of the upgraded Professional Mark 2 range, the FM2-40-03-W features a strengthened metal body, an enhanced regulator mechanism for improved pressure sensitivity, and a larger guarded bowl for increased durability. Supplied complete with a pressure gauge and mounting bracket, it is ready for installation in demanding workshop and industrial environments.
With a maximum flow rate of 3,000 litres per minute, 10 bar maximum working pressure, and a semi-automatic drain, this filter regulator is ideal for medium to high-flow compressed air systems supplying air tools, machinery and automation equipment.
Key Features
- Professional Mark 2 filter regulator for clean, regulated compressed air
- High flow capacity of 3,000 litres per minute
- Integrated 20-micron filter removes moisture and airborne contaminants
- Semi-automatic drain reduces maintenance requirements
- Improved Mark 2 regulator offers greater pressure sensitivity and control
- Heavy-duty metal construction for long service life
- Guarded polycarbonate bowl provides additional protection
- Compact modular design for easy installation and future expansion
- Supplied complete with pressure gauge and mounting bracket
- Suitable for workshops, manufacturing, automotive, agriculture, mining and industrial compressed air systems

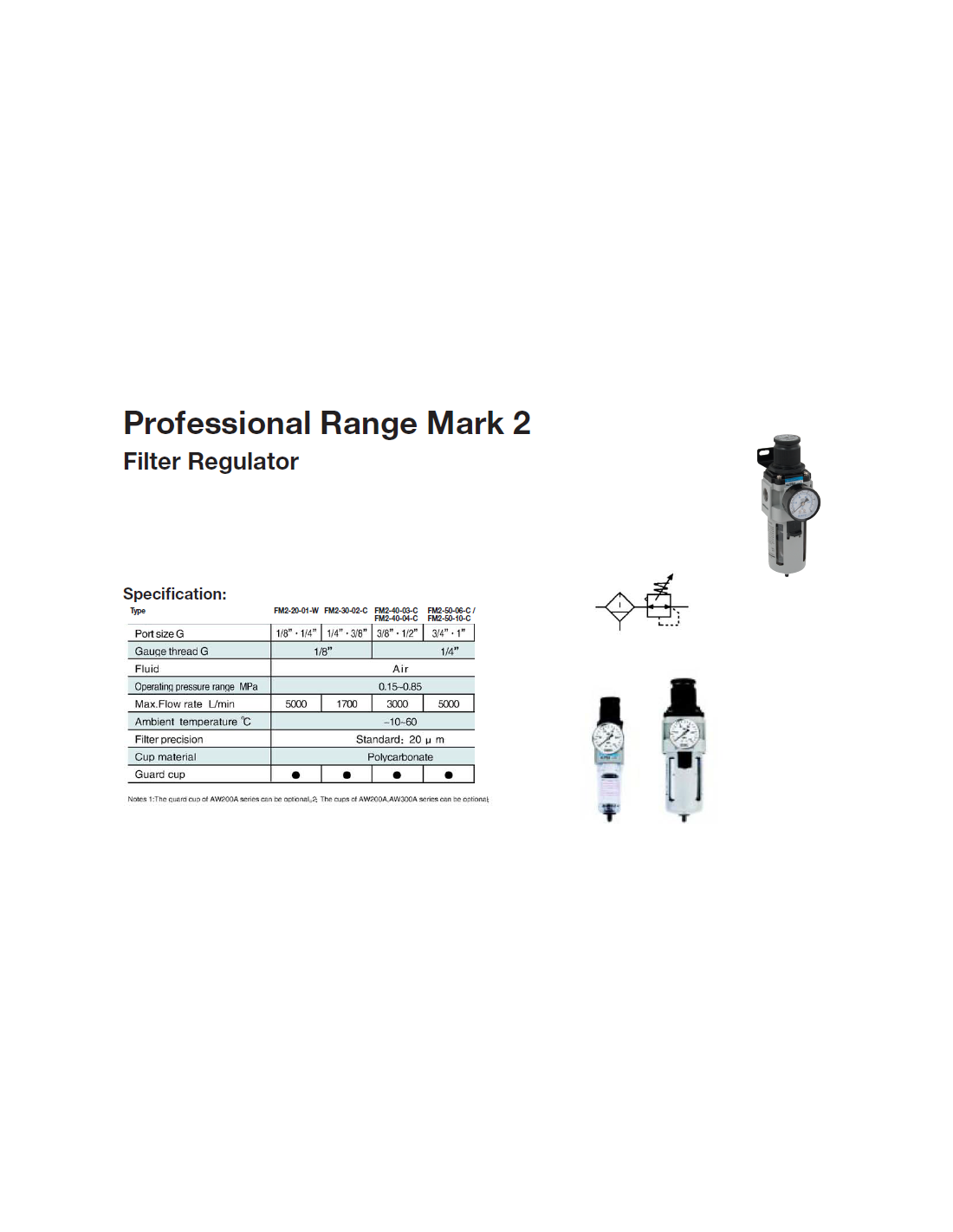

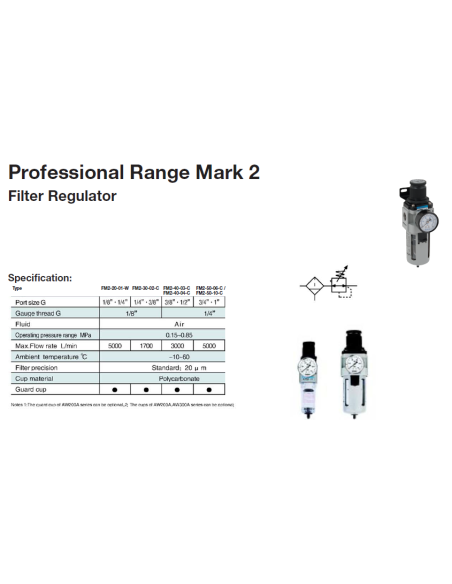

Specifications
- Model: FM2-40-03-W
- Brand: FT Pro
- Product Type: Filter Regulator
- Series: Professional Mark 2
- Port Size: 3/8" BSP Parallel (BSPP)
- Port Gender: Female
- Maximum Flow Rate: 3,000 L/min
- Filtration Rating: 20 Microns
- Maximum Working Pressure: 10 bar (145 PSI)
- Operating Pressure Range: 1.5–8.5 bar
- Working Temperature: -10°C to +60°C
- Drain Type: Semi-Automatic
- Bowl Material: Guarded Polycarbonate
- Body Construction: Heavy-Duty Metal
- Supplied With: Pressure Gauge & Mounting Bracket
- Typical Applications: Air compressors, pneumatic machinery, production equipment, FRL systems, OEM machinery and industrial compressed air installations.
Typical Applications
- Air compressor installations
- Pneumatic production equipment
- Air tools
- Manufacturing machinery
- Automotive workshops
- Agricultural equipment
- Mining applications
- OEM machine building
- Rail engineering
- Industrial automation
Why Use a Filter Regulator?
A filter regulator combines two essential functions into one compact unit by removing moisture and contaminants from the compressed air supply while maintaining a stable outlet pressure. This helps improve tool performance, reduces maintenance costs and protects expensive pneumatic components from premature wear.
